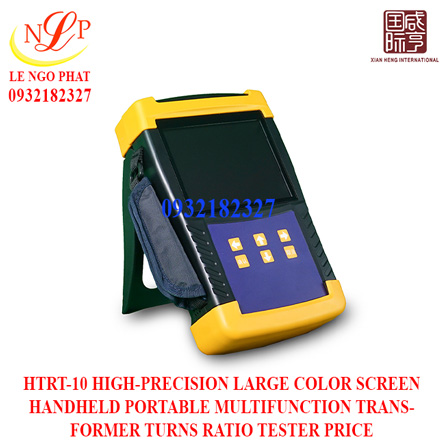

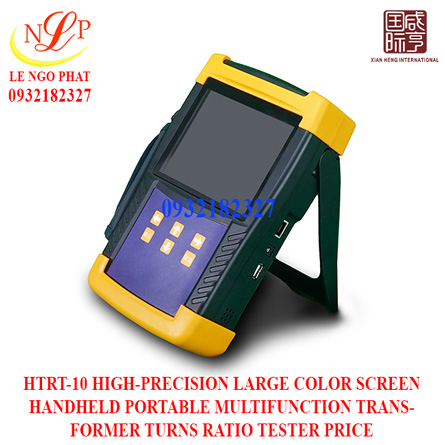

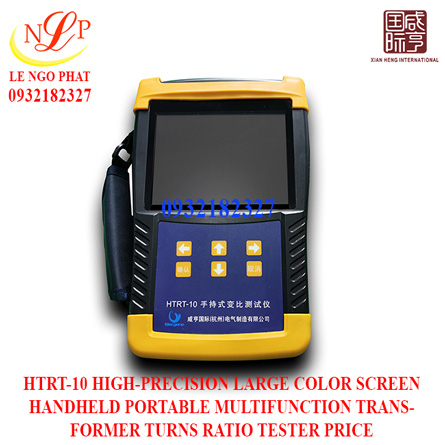

HTRT-10 HIGH-PRECISION LARGE COLOR SCREEN HANDHELD PORTABLE MULTIFUNCTION TRANSFORMER TURNS RATIO TESTER PRICE
Model: HTRT-10
Screen Display: Large high-brightness color LCD screen, intuitive display, still clearly visible in strong sunlight
Measuring Range: 0.9-10000
Accuracy: ≤ 500, ±(0.001+2)
Dimension: 246*156*62mm
Weight: 1.5Kg
Available commodity
Certificate of Origin (CO) issued by the manufacturer accompanying the product
Description:
HTRT-10 is a brand new generation of handheld transformer turns ratio tester. It is small in size and light in weight, only 1.5kg. It is more convenient and faster to operate on-site testing by one person. It is mainly used for transformer turns ratio group test, PT and CT ratio polarity test, with fast test speed and high accuracy.
Features:
1. Appearance design: handheld, light and portable
2. Lightweight: The weight of the host is 1.5kg
3. Portable: handheld design

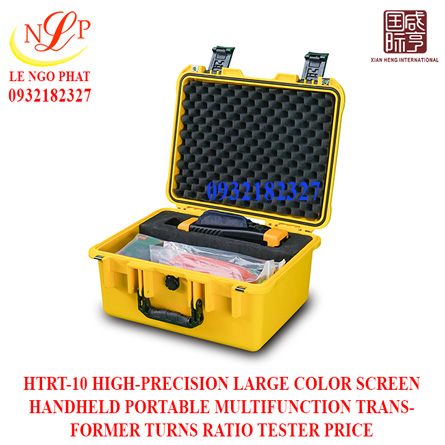

4. Tester and wire in one case: test accessories and wires are not easy to be lost
Six innovative technologies:
1. Real-time data printing
2. Large-capacity lithium battery, long-lasting work
3. Blind test function
4. High precision, wide range
5. One machine with multiple functions, wide variety of test subjects
6. High-precision large color screen
Technical Parameter:
|
Appearance Design |
Imported high-strength materials, handheld, light and portable |
|
Tester and wires in one case |
The main unit and the wire box are integrated, easy to carry, and the test accessories are not easy to lose |
|
Screen Display |
Large high-brightness color LCD screen, intuitive display, still clearly visible in strong sunlight |
|
Measuring Range |
0.9-10000 |
|
Accuracy |
≤ 500, ±(0.001+2) |
|
≥ 500, ≤ 3000, ±(0.002+2) |
|
|
> 3000, ±(0.003+2) |
|
|
Resolution |
0.9-9.9999（0.0001） |
|
100-999.99（0.01） |
|
|
10-99.999（0.001） |
|
|
1000-9999.9（0.1） |
|
|
≥10000（1） |
|
|
Store and Print |
Built-in printer for easy data printing and real-time data storage |
|
Power Supply |
Built-in large-capacity lithium battery, one charge, can continuously test more than 200 times |
|
Dimension |
246*156*62mm |
|
Weight |
1.5Kg |
TỪ KHÓA TÌM KIẾM: HTRT-10 HIGH-PRECISION LARGE COLOR SCREEN HANDHELD PORTABLE MULTIFUNCTION TRANSFORMER TURNS RATIO TESTER PRICE, MÁY KIỂM TRA ĐIỆN ÁP, MÁY KIỂM TRA ĐIỆN ÁP CAO.
Description:
HTRT-10 is a brand new generation of handheld transformer turns ratio tester. It is small in size and light in weight, only 1.5kg. It is more convenient and faster to operate on-site testing by one person. It is mainly used for transformer turns ratio group test, PT and CT ratio polarity test, with fast test speed and high accuracy.
Features:
1. Appearance design: handheld, light and portable
2. Lightweight: The weight of the host is 1.5kg
3. Portable: handheld design
4. Tester and wire in one case: test accessories and wires are not easy to be lost
Six innovative technologies:
1. Real-time data printing
2. Large-capacity lithium battery, long-lasting work
3. Blind test function
4. High precision, wide range
5. One machine with multiple functions, wide variety of test subjects
6. High-precision large color screen
Technical Parameter:
|
Appearance Design |
Imported high-strength materials, handheld, light and portable |
|
Tester and wires in one case |
The main unit and the wire box are integrated, easy to carry, and the test accessories are not easy to lose |
|
Screen Display |
Large high-brightness color LCD screen, intuitive display, still clearly visible in strong sunlight |
|
Measuring Range |
0.9-10000 |
|
Accuracy |
≤ 500, ±(0.001+2) |
|
≥ 500, ≤ 3000, ±(0.002+2) |
|
|
> 3000, ±(0.003+2) |
|
|
Resolution |
0.9-9.9999（0.0001） |
|
100-999.99（0.01） |
|
|
10-99.999（0.001） |
|
|
1000-9999.9（0.1） |
|
|
≥10000（1） |
|
|
Store and Print |
Built-in printer for easy data printing and real-time data storage |
|
Power Supply |
Built-in large-capacity lithium battery, one charge, can continuously test more than 200 times |
|
Dimension |
246*156*62mm |
|
Weight |
1.5Kg |
Description:
HTRT-10 is a brand new generation of handheld transformer turns ratio tester. It is small in size and light in weight, only 1.5kg. It is more convenient and faster to operate on-site testing by one person. It is mainly used for transformer turns ratio group test, PT and CT ratio polarity test, with fast test speed and high accuracy.
Features:
1. Appearance design: handheld, light and portable
2. Lightweight: The weight of the host is 1.5kg
3. Portable: handheld design
4. Tester and wire in one case: test accessories and wires are not easy to be lost
Six innovative technologies:
1. Real-time data printing
2. Large-capacity lithium battery, long-lasting work
3. Blind test function
4. High precision, wide range
5. One machine with multiple functions, wide variety of test subjects
6. High-precision large color screen
Technical Parameter:
|
Appearance Design |
Imported high-strength materials, handheld, light and portable |
|
Tester and wires in one case |
The main unit and the wire box are integrated, easy to carry, and the test accessories are not easy to lose |
|
Screen Display |
Large high-brightness color LCD screen, intuitive display, still clearly visible in strong sunlight |
|
Measuring Range |
0.9-10000 |
|
Accuracy |
≤ 500, ±(0.001+2) |
|
≥ 500, ≤ 3000, ±(0.002+2) |
|
|
> 3000, ±(0.003+2) |
|
|
Resolution |
0.9-9.9999（0.0001） |
|
100-999.99（0.01） |
|
|
10-99.999（0.001） |
|
|
1000-9999.9（0.1） |
|
|
≥10000（1） |
|
|
Store and Print |
Built-in printer for easy data printing and real-time data storage |
|
Power Supply |
Built-in large-capacity lithium battery, one charge, can continuously test more than 200 times |
|
Dimension |
246*156*62mm |
|
Weight |
1.5Kg |
Available commodity
Certificate of Origin (CO) issued by the manufacturer accompanying the product
