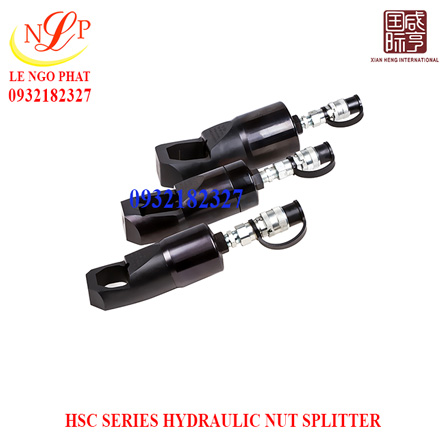

HSC SERIES HYDRAULIC NUT SPLITTER

HSC SERIES HYDRAULIC NUT SPLITTER

HSC SERIES HYDRAULIC NUT SPLITTER

Model: HSC-1924, HSC-1924, HSC-2432, HSC-3241 HSC-3241A (Double Blades), HSC-4150

Size: M6-M12, M12-M16, M16-M22, M22-M27, M22-M27, M27-M33

Hexagon Nut: 10-19, 19-24, 24-32, 32-41, 32-41, 41-50

Output Force: 5ton, 9ton, 9ton, 15ton, 15ton, 25ton

Weight: 1.7kg, 1.7kg, 2.5kg, 3.4kg, 3.8kg, 4.5kg

Dimension: 140x50x50mm, 145x50x50mm, 180x60x60mm, 190x70x70mm, 190x70x70m, 210x80x80mm

Giá: 0932182327

Mã sản phẩm: HSC SERIES

Model: HSC SERIES

Technical data :

Model	Size	Hexagon Nut	Output Force	Weight	Dimension
HSC-1319	M6-M12	10-19	5ton	1.7kg	140x50x50mm
HSC-1924	M12-M16	19-24	9ton	1.7kg	145x50x50mm
HSC-2432	M16-M22	24-32	9ton	2.5kg	180x60x60mm
HSC-3241	M22-M27	32-41	15ton	3.4kg	190x70x70mm
HSC-3241A (Double Blades)	M22-M27	32-41	15ton	3.8kg	205x75x75mm
HSC-4150	M27-M33	41-50	25ton	4.5kg	210x80x80mm

Features:

1. Used to cut rusted nuts

2.Unique angled head allows direct contact with targets

3.With quick coupler for easy removal

4.Simply cut from one side of the nut, then rotate the tool 1/2 circle, cut the other side, and the nut split into two halves, easily take it out.

Technical data :

Model	Size	Hexagon Nut	Output Force	Weight	Dimension
HSC-1319	M6-M12	10-19	5ton	1.7kg	140x50x50mm
HSC-1924	M12-M16	19-24	9ton	1.7kg	145x50x50mm
HSC-2432	M16-M22	24-32	9ton	2.5kg	180x60x60mm
HSC-3241	M22-M27	32-41	15ton	3.4kg	190x70x70mm
HSC-3241A (Double Blades)	M22-M27	32-41	15ton	3.8kg	205x75x75mm
HSC-4150	M27-M33	41-50	25ton	4.5kg	210x80x80mm

Features:

1. Used to cut rusted nuts

2.Unique angled head allows direct contact with targets

3.With quick coupler for easy removal

4.Simply cut from one side of the nut, then rotate the tool 1/2 circle, cut the other side, and the nut split into two halves, easily take it out.

Technical data :

Model	Size	Hexagon Nut	Output Force	Weight	Dimension
HSC-1319	M6-M12	10-19	5ton	1.7kg	140x50x50mm
HSC-1924	M12-M16	19-24	9ton	1.7kg	145x50x50mm
HSC-2432	M16-M22	24-32	9ton	2.5kg	180x60x60mm
HSC-3241	M22-M27	32-41	15ton	3.4kg	190x70x70mm
HSC-3241A (Double Blades)	M22-M27	32-41	15ton	3.8kg	205x75x75mm
HSC-4150	M27-M33	41-50	25ton	4.5kg	210x80x80mm

Features:

1. Used to cut rusted nuts

2.Unique angled head allows direct contact with targets

3.With quick coupler for easy removal

4.Simply cut from one side of the nut, then rotate the tool 1/2 circle, cut the other side, and the nut split into two halves, easily take it out.

DOWNLOAD Catalogue
