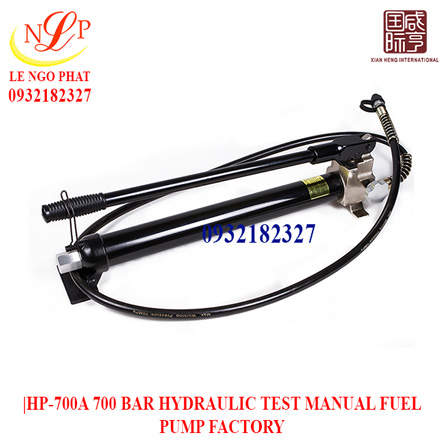

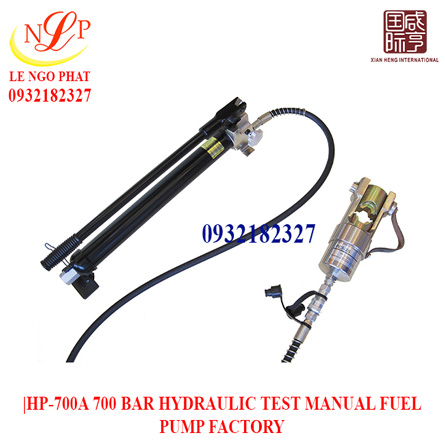

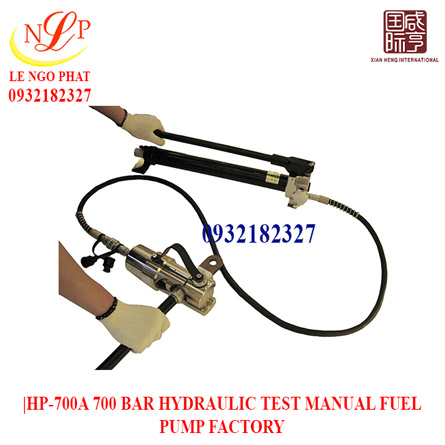

HP-700A 700 BAR HYDRAULIC TEST MANUAL FUEL PUMP FACTORY
Model: HP-700A
Output Pressure: 700bar
Reservoir Capacity: 0.72L
Oil Delivery at High Pressure: 2.26cc/stroke
Oil Delivery at Low Pressure: 12.26cc/stroke
Standard Accessories: 2m hydraulic hose
Packing: Paper carton
Carton Size: 0.71*0.2*0.22m
Net Weight: 9.6kg
Gross Weight: 16.5kg
Technical Data:
|
Model |
HP-700A |
Output Pressure |
700bar |
|
Reservoir Capacity |
0.72L |
Oil Delivery at High Pressure |
2.26cc/stroke |
|
Oil Delivery at Low Pressure |
12.26cc/stroke |
Standard Accessories |
2m hydraulic hose |
|
Packing |
Paper carton |
Carton Size |
0.71*0.2*0.22m |
|
Net Weight |
9.6kg |
Gross Weight |
16.5kg |
Features:
1. Pump is designed with two stage of high and low speed for quick oil output
2. Internal safety valve makes auto-relief when it reaches set value
3. Vacuum oil receptacle can work at any angle
4. Made of high strength and light metal, high strength and sturdy
5. Longer handle makes labor saving and quick oil output
Technical Data:
|
Model |
HP-700A |
Output Pressure |
700bar |
|
Reservoir Capacity |
0.72L |
Oil Delivery at High Pressure |
2.26cc/stroke |
|
Oil Delivery at Low Pressure |
12.26cc/stroke |
Standard Accessories |
2m hydraulic hose |
|
Packing |
Paper carton |
Carton Size |
0.71*0.2*0.22m |
|
Net Weight |
9.6kg |
Gross Weight |
16.5kg |
Features:
1. Pump is designed with two stage of high and low speed for quick oil output
2. Internal safety valve makes auto-relief when it reaches set value
3. Vacuum oil receptacle can work at any angle
4. Made of high strength and light metal, high strength and sturdy
5. Longer handle makes labor saving and quick oil output
Technical Data:
|
Model |
HP-700A |
Output Pressure |
700bar |
|
Reservoir Capacity |
0.72L |
Oil Delivery at High Pressure |
2.26cc/stroke |
|
Oil Delivery at Low Pressure |
12.26cc/stroke |
Standard Accessories |
2m hydraulic hose |
|
Packing |
Paper carton |
Carton Size |
0.71*0.2*0.22m |
|
Net Weight |
9.6kg |
Gross Weight |
16.5kg |
Features:
1. Pump is designed with two stage of high and low speed for quick oil output
2. Internal safety valve makes auto-relief when it reaches set value
3. Vacuum oil receptacle can work at any angle
4. Made of high strength and light metal, high strength and sturdy
5. Longer handle makes labor saving and quick oil output
