Model HLP3-30
Voltage/Frequency 220/50Hz
Tank capacity 1.6 gal
Flow(low-high) 1.4 - 0.04 gal/min
Max Output Pressure 43,500 psi
Output Port Size 2x1/4" BSP
Power 1.5 hp
Weight 59.5 lb

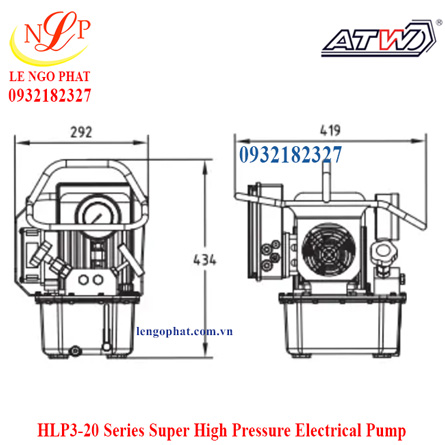

Dimension 16.5 x 11.5 x 17.1 in

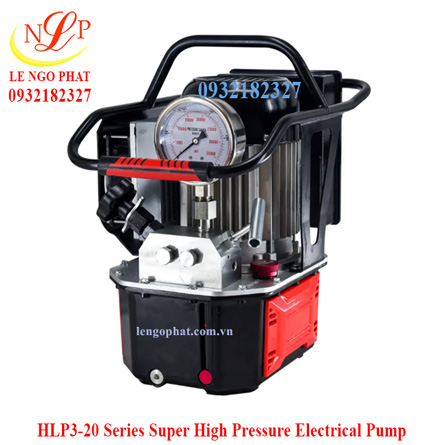

Super High Pressure Electrical Pump
The provided cooling system can be used for 24 hours
Model | HLP3-20 | HLP3-20D | HLP3-30 |
Voltage/Frequency | 220v/50Hz | 115V/60Hz | 220/50Hz |
Tank capacity | 1.6 gal | ||
Flow(low-high) | 1.6 - 0.08 gal/min | 1.6 - 0.08 gal/min | 1.4 - 0.04 gal/min |
Max Output Pressure | 29,000 psi | 29,000 psi | 43,500 psi |
Output Port Size | 2x1/4" BSP | ||
Power | 1.5 hp | 1.2 hp | 1.5 hp |
Weight | 59.5 lb | ||
Dimension | 16.5 x 11.5 x 17.1 in |
Super High Pressure Electrical Pump
The provided cooling system can be used for 24 hours
Model | HLP3-20 | HLP3-20D | HLP3-30 |
Voltage/Frequency | 220v/50Hz | 115V/60Hz | 220/50Hz |
Tank capacity | 1.6 gal | ||
Flow(low-high) | 1.6 - 0.08 gal/min | 1.6 - 0.08 gal/min | 1.4 - 0.04 gal/min |
Max Output Pressure | 29,000 psi | 29,000 psi | 43,500 psi |
Output Port Size | 2x1/4" BSP | ||
Power | 1.5 hp | 1.2 hp | 1.5 hp |
Weight | 59.5 lb | ||
Dimension | 16.5 x 11.5 x 17.1 in |
Super High Pressure Electrical Pump
The provided cooling system can be used for 24 hours
Model | HLP3-20 | HLP3-20D | HLP3-30 |
Voltage/Frequency | 220v/50Hz | 115V/60Hz | 220/50Hz |
Tank capacity | 1.6 gal | ||
Flow(low-high) | 1.6 - 0.08 gal/min | 1.6 - 0.08 gal/min | 1.4 - 0.04 gal/min |
Max Output Pressure | 29,000 psi | 29,000 psi | 43,500 psi |
Output Port Size | 2x1/4" BSP | ||
Power | 1.5 hp | 1.2 hp | 1.5 hp |
Weight | 59.5 lb | ||
Dimension | 16.5 x 11.5 x 17.1 in |
