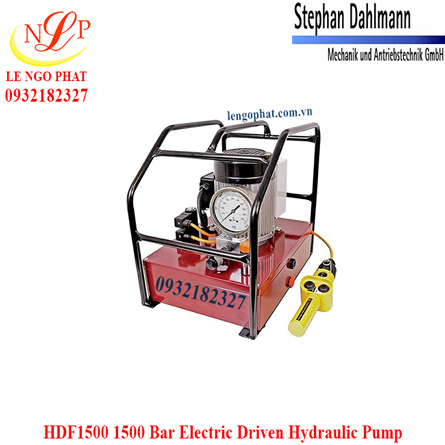

HDF1500 Electric Driven Hydraulic Pump

1500 Bar Hydraulic Test Pump

HDF1500 Electric Driven Hydraulic Pump

Product Code:             HDF1500

Maximum Pressure:    1500 Bar

Minimum Pressure:    30 Bar

Flow Rate (Low-High):          0.5 - 3.5 l/d

Electric Voltage:         220V - 0,75 kW

Output Port:                Cejn 116 Fem. Coupler

Gauge:                         1600 Bar ø100mm

Cable Remote Control:           Available (24V DC)

Stepless Press. Adjst:  Available

Noise Level:   82 db (A)

Sizes (W-B-H):           45x32x43cm

Weight with Oil:         38 Kg

Giá: 0932182327

Mã sản phẩm: HDF1500

Model: HDF1500

Features

  • Model Code HDF1500
  • Flow rate 0.5 lpm at 1500 bar
  • Flow rate 3.5 lpm at 30 bar
  • Electric motor 220V – 0.75 kW
  • 5m cable remote control 24V DC
  • Stepless pressure adjustment
  • 1600 bar ø100mm gauge
  • Oil output Cejn 116 coupler
  • Portable lightweight, 38 kg
  • Noise level 82 db (A)
  • Protecting frame, oil sight glass
  • Made in Germany, by Dahlmann GmbH

 Technical Specifications

    Model Unit HDF 1500 HDF 2000 HDF 2500
    Working pressure bar 1500 2000 2500
    Pump type ** Two Speed / Single Acting Two Speed / Single Acting Two Speed / Single Acting
    Flow at low pressure (up to 30 bar) ltr 3,5 3,5 3,5
    Flow at high pressure (up to 2500 bar) ltr 0,5 0,5 0,27
    Oil tank capacity ltr 5 5 5
    Pressure gauge bar 1600 2500 3000
    External stepless pressure option *** Available
    Electric motor power kW 0.75 kW  50-60 Hz
    Electrical voltage V 220V
    Working noise db 82
    Control valve (2/2) ** 5 meter remote control
    Oil output port G G1/4" CEJN 116 G1/4" CEJN 125 G1/4" CEJN 135
    Weight (oil included) kg 38
    Sizes (W x L x H ) mm 450 x 320 x 430

Features

  • Model Code HDF1500
  • Flow rate 0.5 lpm at 1500 bar
  • Flow rate 3.5 lpm at 30 bar
  • Electric motor 220V – 0.75 kW
  • 5m cable remote control 24V DC
  • Stepless pressure adjustment
  • 1600 bar ø100mm gauge
  • Oil output Cejn 116 coupler
  • Portable lightweight, 38 kg
  • Noise level 82 db (A)
  • Protecting frame, oil sight glass
  • Made in Germany, by Dahlmann GmbH

 Technical Specifications

    Model Unit HDF 1500 HDF 2000 HDF 2500
    Working pressure bar 1500 2000 2500
    Pump type ** Two Speed / Single Acting Two Speed / Single Acting Two Speed / Single Acting
    Flow at low pressure (up to 30 bar) ltr 3,5 3,5 3,5
    Flow at high pressure (up to 2500 bar) ltr 0,5 0,5 0,27
    Oil tank capacity ltr 5 5 5
    Pressure gauge bar 1600 2500 3000
    External stepless pressure option *** Available
    Electric motor power kW 0.75 kW  50-60 Hz
    Electrical voltage V 220V
    Working noise db 82
    Control valve (2/2) ** 5 meter remote control
    Oil output port G G1/4" CEJN 116 G1/4" CEJN 125 G1/4" CEJN 135
    Weight (oil included) kg 38
    Sizes (W x L x H ) mm 450 x 320 x 430

Features

  • Model Code HDF1500
  • Flow rate 0.5 lpm at 1500 bar
  • Flow rate 3.5 lpm at 30 bar
  • Electric motor 220V – 0.75 kW
  • 5m cable remote control 24V DC
  • Stepless pressure adjustment
  • 1600 bar ø100mm gauge
  • Oil output Cejn 116 coupler
  • Portable lightweight, 38 kg
  • Noise level 82 db (A)
  • Protecting frame, oil sight glass
  • Made in Germany, by Dahlmann GmbH

 Technical Specifications

    Model Unit HDF 1500 HDF 2000 HDF 2500
    Working pressure bar 1500 2000 2500
    Pump type ** Two Speed / Single Acting Two Speed / Single Acting Two Speed / Single Acting
    Flow at low pressure (up to 30 bar) ltr 3,5 3,5 3,5
    Flow at high pressure (up to 2500 bar) ltr 0,5 0,5 0,27
    Oil tank capacity ltr 5 5 5
    Pressure gauge bar 1600 2500 3000
    External stepless pressure option *** Available
    Electric motor power kW 0.75 kW  50-60 Hz
    Electrical voltage V 220V
    Working noise db 82
    Control valve (2/2) ** 5 meter remote control
    Oil output port G G1/4" CEJN 116 G1/4" CEJN 125 G1/4" CEJN 135
    Weight (oil included) kg 38
    Sizes (W x L x H ) mm 450 x 320 x 430
