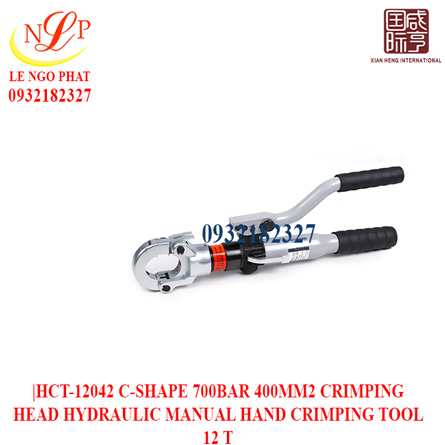

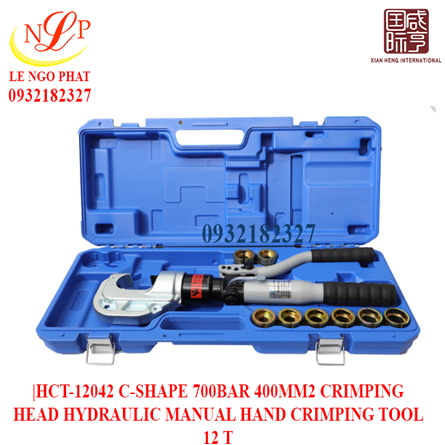

HCT-12042 C-SHAPE 700BAR 400MM2 CRIMPING HEAD HYDRAULIC MANUAL HAND CRIMPING TOOL 12 T

HCT-12042 C-SHAPE 700BAR 400MM2 CRIMPING HEAD HYDRAULIC MANUAL HAND CRIMPING TOOL 12 T

Output force: 12T

Rated Pressure: 700bar

Crimping capacity: 400/300/95 mm2(Cu/Al/C-clamps)

Standard dies: Cu70-400mm2

Weight: 6.1kg

Packing: Plastic Case

Giá: 0932182327

Mã sản phẩm: HCT-12042

Model: HCT-12042

Technical Data:

Output force	12T
Rated Pressure	700bar
Crimping capacity	400/300/95 mm2(Cu/Al/C-clamps)
Standard dies	Cu70-400mm2
Weight	6.1kg
Packing	Plastic Case

Features:
1. Stroke up to 42mm;max. crimping up to 400mm²
2. C-shape crimping head .rotates 360°
3. Two stage hydraulics
4. Automatic retraction when crimp is finished

Technical Data:

Output force	12T
Rated Pressure	700bar
Crimping capacity	400/300/95 mm2(Cu/Al/C-clamps)
Standard dies	Cu70-400mm2
Weight	6.1kg
Packing	Plastic Case

Features:
1. Stroke up to 42mm;max. crimping up to 400mm²
2. C-shape crimping head .rotates 360°
3. Two stage hydraulics
4. Automatic retraction when crimp is finished

Technical Data:

Output force	12T
Rated Pressure	700bar
Crimping capacity	400/300/95 mm2(Cu/Al/C-clamps)
Standard dies	Cu70-400mm2
Weight	6.1kg
Packing	Plastic Case

Features:
1. Stroke up to 42mm;max. crimping up to 400mm²
2. C-shape crimping head .rotates 360°
3. Two stage hydraulics
4. Automatic retraction when crimp is finished
