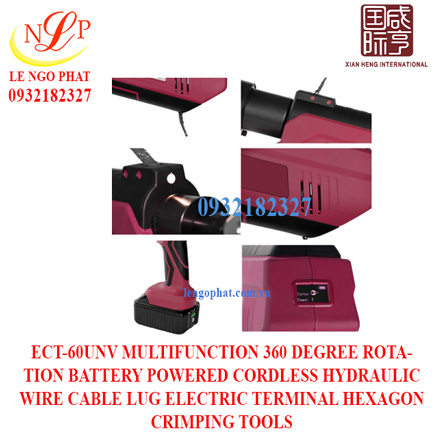

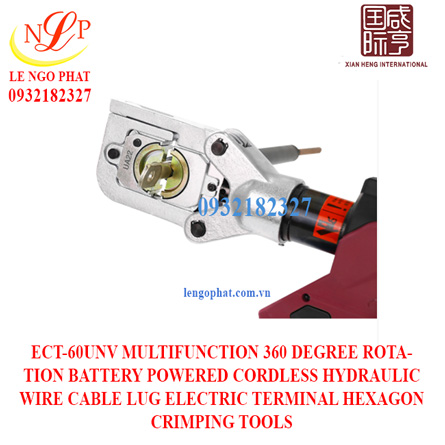

ECT-60UNV MULTIFUNCTION 360 DEGREE ROTATION BATTERY POWERED CORDLESS HYDRAULIC WIRE CABLE LUG ELECTRIC TERMINAL HEXAGON CRIMPING TOOLS
Model: ECT-60UNV
Crimping Force: 6T
Rated Pressure: 700bar
Crimping Capacity: Cu300mm2 / Al240mm2
Punching Capacity:
Plain Steel: 3.5mm thick, Ø64mm
Stainless Steel: 2.5mm thick, Ø64mm
Cutting Capacity
Max. 40mm Cu/Al/ACSR
Packing; Plastic Case
Standard Dies
Die adapter, Cu50-300mm2
Cutting bade: UCACSR and UC40
Technical Data:
|
Model |
ECT-60UNV |
|
Crimping Force |
6T |
|
Rated Pressure |
700bar |
|
Crimping Capacity |
Cu300mm2 / Al240mm2 |
|
|
Plain Steel: 3.5mm thick, Ø64mm |
|
Stainless Steel: 2.5mm thick, Ø64mm |
|
|
Cutting Capacity |
Max. 40mm Cu/Al/ACSR |
|
Packing |
Plastic Case |
|
|
Die adapter, Cu50-300mm2 |
|
Cutting bade: UCACSR and UC40 |
Technical Data:
|
Model |
ECT-60UNV |
|
Crimping Force |
6T |
|
Rated Pressure |
700bar |
|
Crimping Capacity |
Cu300mm2 / Al240mm2 |
|
|
Plain Steel: 3.5mm thick, Ø64mm |
|
Stainless Steel: 2.5mm thick, Ø64mm |
|
|
Cutting Capacity |
Max. 40mm Cu/Al/ACSR |
|
Packing |
Plastic Case |
|
|
Die adapter, Cu50-300mm2 |
|
Cutting bade: UCACSR and UC40 |
Technical Data:
|
Model |
ECT-60UNV |
|
Crimping Force |
6T |
|
Rated Pressure |
700bar |
|
Crimping Capacity |
Cu300mm2 / Al240mm2 |
|
|
Plain Steel: 3.5mm thick, Ø64mm |
|
Stainless Steel: 2.5mm thick, Ø64mm |
|
|
Cutting Capacity |
Max. 40mm Cu/Al/ACSR |
|
Packing |
Plastic Case |
|
|
Die adapter, Cu50-300mm2 |
|
Cutting bade: UCACSR and UC40 |
