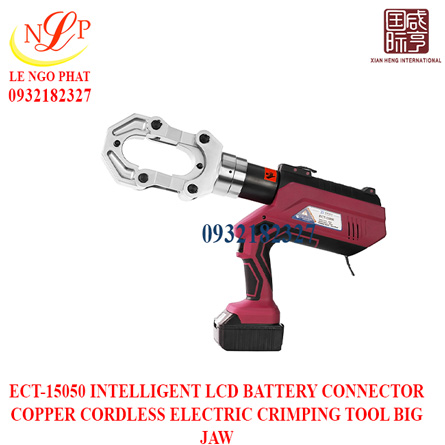

Model: ECT-15050
Output Force: 15T
Stroke: 50mm
Rated Pressure: 700bar
Crimping Capacity: Cu630mm² / Al500mm2
Weight: 9.5kg
Packing: Plastic Case
Standard Dies: Die adapter, Cu70-400mm2
Technical Data:
|
Model |
ECT-15050 |
|
Output Force |
15T |
|
Stroke |
50mm |
|
Rated Pressure |
700bar |
|
Crimping Capacity |
Cu630mm² / Al500mm2 |
|
Weight |
9.5kg |
|
Packing |
Plastic Case |
|
Standard Dies |
Die adapter, Cu70-400mm2 |

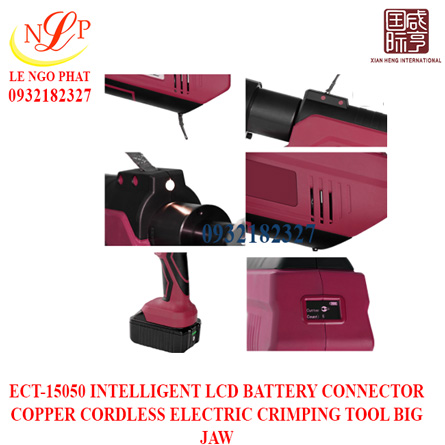

Features:
1. Big jaw for larger crimping capacity
2. Use die adapter for 12T crimping dies
3. Crimping head rotates 360°
4. Two stage hydraulics, automatic pressure release, smart chip, easy to read and record the use of information
5. High-capacity 18V power display lithium battery with fast charger
6. Equipped with LED work lights to make work easier
7.External LCD screen, easy to read the number of crimping
8.Housing and carrying case are made of environmental-friendly PP material, integral molding, compression and drop resistance
