CÔNG TY TNHH LÊ NGÔ PHÁT

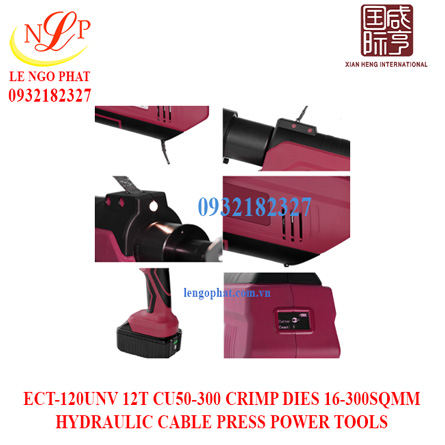

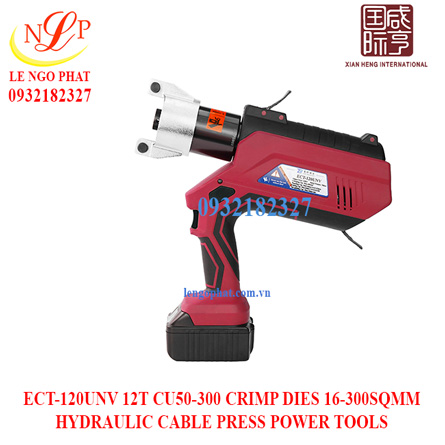

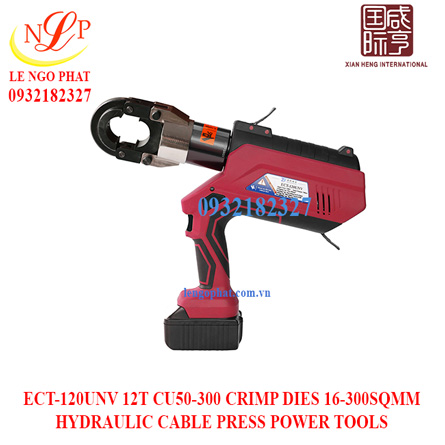

ECT-120UNV 12T CU50-300 CRIMP DIES 16-300SQMM HYDRAULIC CABLE PRESS POWER TOOLS
Model: ECT-120UNV
Crimping Force: 12T
Rated Pressure: 700bar
Crimping Capacity: Cu400mm2 / Al300mm2
Punching Capacity
Angle Steel: 6mm thickness
Busbar Cu/Al: Max. 6.5mm thickness
Cutting Capacity
Max. 44mm Cu/Al/ACSR
Nut Splitting Capacity
Max. 36mm Nut
Packing: Plastic Case
Standard Dies:Crimping dies Cu50-400 mm2, punching dies 10.5, 13.5, 17.5, nut splitting blade, blade holder, cutting head
Technical Data:
|
Model |
ECT-120UNV |
|
Crimping Force |
12T |
|
Rated Pressure |
700bar |
|
Crimping Capacity |
Cu400mm2 / Al300mm2 |
|
|
Angle Steel: 6mm thickness |
|
Busbar Cu/Al: Max. 6.5mm thickness |
|
|
Cutting Capacity |
Max. 44mm Cu/Al/ACSR |
|
Nut Splitting Capacity |
Max. 36mm Nut |
|
Packing |
Plastic Case |
|
|
Crimping dies Cu50-400 mm2, punching dies 10.5, 13.5, 17.5, nut splitting blade, blade holder, cutting head |
Features:
1. One tool for multifunction, crimping, cutting, punching and nut splitting
2. Flip top style for easy access to the fitting
3. Crimping head rotates 360°
4. Two stage hydraulics, automatic pressure release, smart chip, easy to read and record the use of information
5. High-capacity 18V power display lithium battery with fast charger
6. Equipped with LED light for dark place
7.External LCD screen, easy to read the number of crimping
8.Housing and carrying case are made of environmental-friendly PP material, integral molding, compression and drop resistance
Technical Data:
|
Model |
ECT-120UNV |
|
Crimping Force |
12T |
|
Rated Pressure |
700bar |
|
Crimping Capacity |
Cu400mm2 / Al300mm2 |
|
|
Angle Steel: 6mm thickness |
|
Busbar Cu/Al: Max. 6.5mm thickness |
|
|
Cutting Capacity |
Max. 44mm Cu/Al/ACSR |
|
Nut Splitting Capacity |
Max. 36mm Nut |
|
Packing |
Plastic Case |
|
|
Crimping dies Cu50-400 mm2, punching dies 10.5, 13.5, 17.5, nut splitting blade, blade holder, cutting head |
Features:
1. One tool for multifunction, crimping, cutting, punching and nut splitting
2. Flip top style for easy access to the fitting
3. Crimping head rotates 360°
4. Two stage hydraulics, automatic pressure release, smart chip, easy to read and record the use of information
5. High-capacity 18V power display lithium battery with fast charger
6. Equipped with LED light for dark place
7.External LCD screen, easy to read the number of crimping
8.Housing and carrying case are made of environmental-friendly PP material, integral molding, compression and drop resistance
Technical Data:
|
Model |
ECT-120UNV |
|
Crimping Force |
12T |
|
Rated Pressure |
700bar |
|
Crimping Capacity |
Cu400mm2 / Al300mm2 |
|
|
Angle Steel: 6mm thickness |
|
Busbar Cu/Al: Max. 6.5mm thickness |
|
|
Cutting Capacity |
Max. 44mm Cu/Al/ACSR |
|
Nut Splitting Capacity |
Max. 36mm Nut |
|
Packing |
Plastic Case |
|
|
Crimping dies Cu50-400 mm2, punching dies 10.5, 13.5, 17.5, nut splitting blade, blade holder, cutting head |
Features:
1. One tool for multifunction, crimping, cutting, punching and nut splitting
2. Flip top style for easy access to the fitting
3. Crimping head rotates 360°
4. Two stage hydraulics, automatic pressure release, smart chip, easy to read and record the use of information
5. High-capacity 18V power display lithium battery with fast charger
6. Equipped with LED light for dark place
7.External LCD screen, easy to read the number of crimping
8.Housing and carrying case are made of environmental-friendly PP material, integral molding, compression and drop resistance
