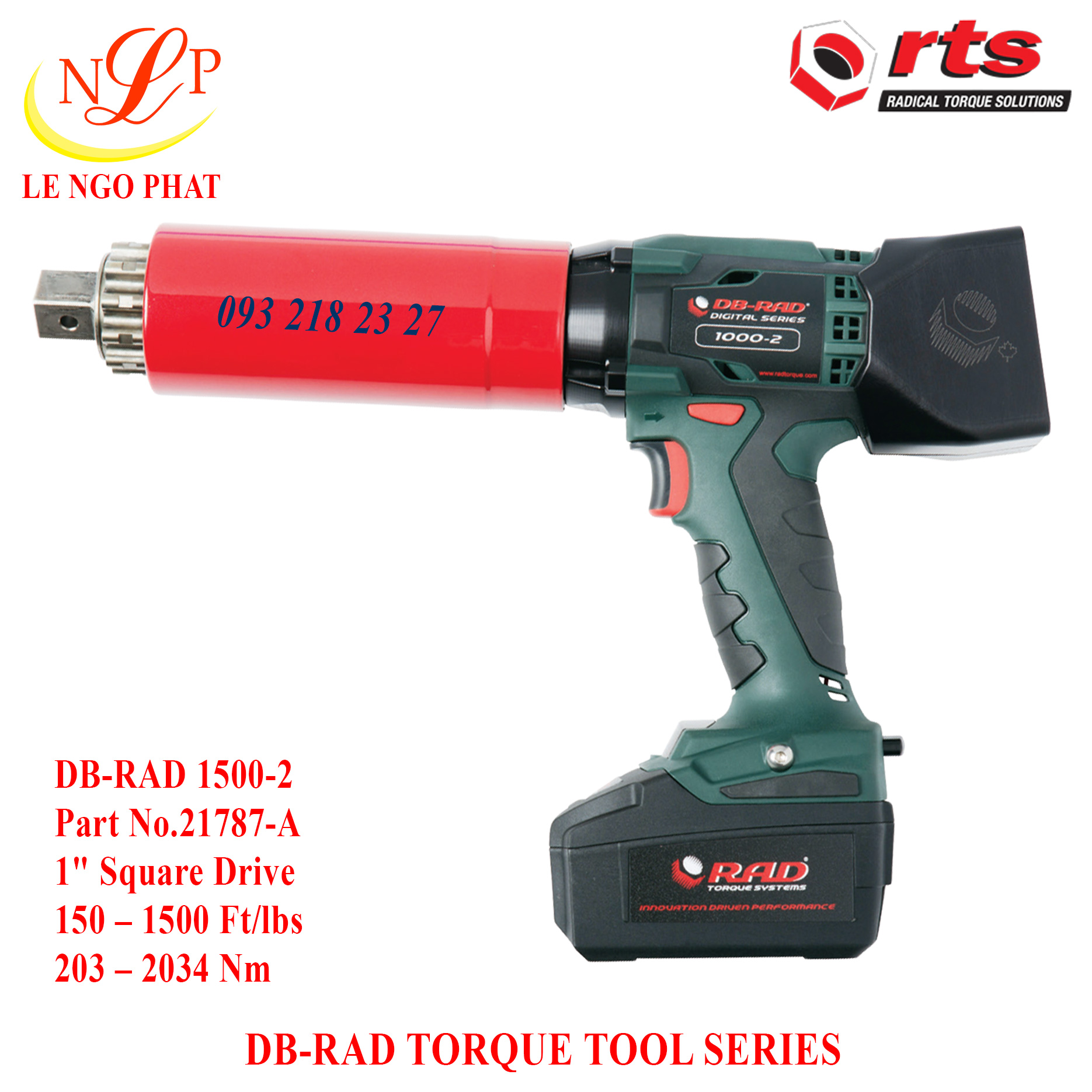

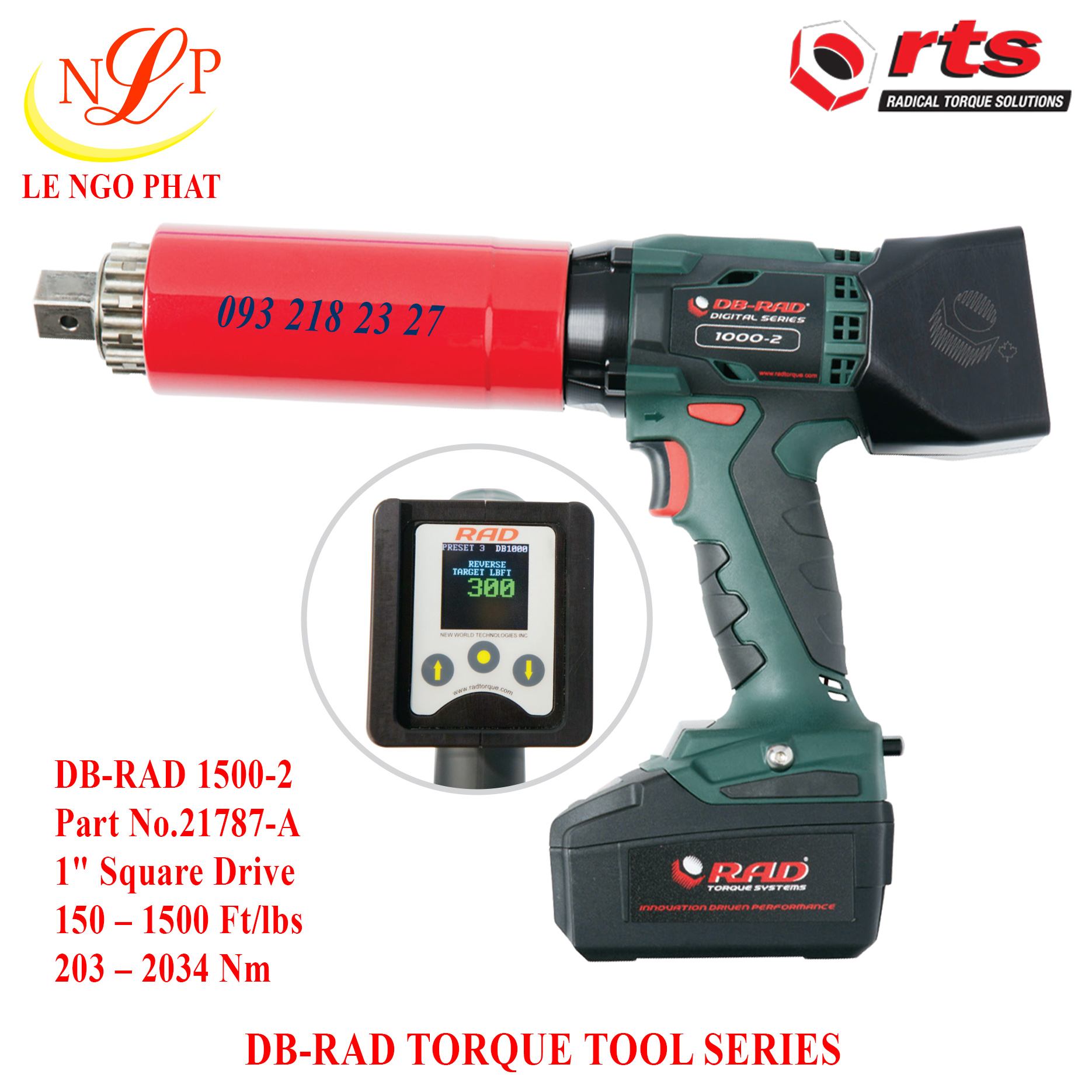

DB-RAD 1500-2

Digital/Battery Torque Wrenches
DB-RAD 1500-2
Tool Model: DB-RAD 1500-2
Part No.21787-A
Drive Size: 1" (1 inch)
Torque (Low - High): 150 – 1500 ft/lbs (203 – 2034Nm)
Speed: 17 RPM
Noise Level: 80 DBA

Standard Features

18V Lithium-ion Battery
Programmable presets
Accuracy +/- 5%
Repeatability of +/–2%
Auto 2-speed gearbox

Giá: 0932182327

Mã sản phẩm: SÚNG SIẾT ỐC BULONG DÙNG PIN

Model: 150 – 1500 Ft/lbs

DB-RAD TORQUE TOOL SERIES:
Digital B-RAD powered torque wrenches are the world’s first digital cordless, lithium-ion powered battery tool on the market, with advanced patented technology containing digital display and single increment torque settings. The colour screen with keypad provides unmistakable visual LED indicator lights with user definable presets for ease of use. DB-RAD’s now have Torque & Angle functionality as standard as well as automatic reaction arm back off after a torque cycle completion.

Standard Features

18V Lithium-ion Battery
Programmable presets
Accuracy +/- 5%
Auto 2-speed gearbox

Imperial Models (Australia /Asia Pacific):

PART NO.	TOOL MODEL	SQ DR (INCH)	TORQUE		SPEED	NOISE LEVEL
PART NO.	TOOL MODEL	SQ DR (INCH)	FT.LBS	NM	RPM	DBA
B-RAD SELECT SERIES
28283	B-RAD 500 BRUSHLESS SELECT	¾”	130 – 500	170 – 700	21.5	65
28285	B-RAD 1000 BRUSHLESS SELECT	¾”	200 – 1000	300 – 1400	10.5	65
28286	B-RAD 1000-2 BRUSHLESS SELECT	¾”	300 – 1000	300 – 1400	71	65
28287	B-RAD 1500 BRUSHLESS SELECT	1”	300 – 1500	400 – 2000	6	65
28288	B-RAD 1500-2 BRUSHLESS SELECT	1”	300 – 1500	400 – 2000	19.5	65
28289	B-RAD 3000 BRUSHLESS SELECT	1”	600 – 3000	800 – 4000	3	65
28290	B-RAD 3000-2 BRUSHLESS SELECT	1”	600 – 3000	800 – 4000	20	65
28291	B-RAD 5000 BRUSHLESS SELECT	1 ½”	1000 – 5000	1350 – 7000	2.1	65
DB-RAD SERIES
21779-A	DB-RAD 500 – 2	¾”	50 – 500	68 – 678	59	80
21783-A	DB-RAD 1000 – 2	¾”	100 – 1000	136 – 1356	19	80
21787-A	DB-RAD 1500 – 2	1”	150 – 1500	203 – 2034	17	80
24965-A	DB-RAD 3000 – 2	1”	300 – 3000	407 – 4068	12	80

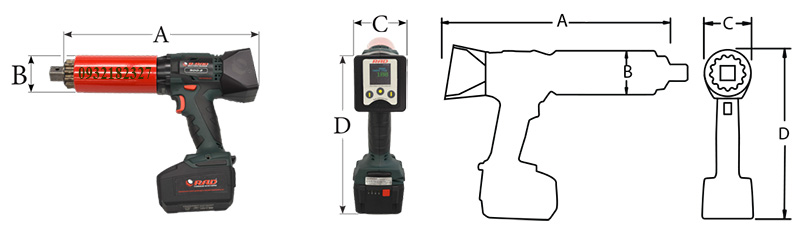

PART NO.	TOOL MODEL	WEIGHT	DIMENSION (MM)
PART NO.	TOOL MODEL	KG	A	B	C	D
B-RAD SELECT SERIES
28283	B-RAD 500 BRUSHLESS SELECT	3.5	231	63.5	67	262
28285	B-RAD 1000 BRUSHLESS SELECT	3.5	231	63.5	67	262
28286	B-RAD 1000-2 BRUSHLESS SELECT	4.3	231	63.5	67	262
28287	B-RAD 1500 BRUSHLESS SELECT	4.0	244	69	69	262
28288	B-RAD 1500-2 BRUSHLESS SELECT	4.9	298	69	69	262
28289	B-RAD 3000 BRUSHLESS SELECT	6.0	285	81	81	266
28290	B-RAD 3000-2 BRUSHLESS SELECT	6.7	337	81	81	266
28291	B-RAD 5000 BRUSHLESS SELECT	8.8	295	95	95	272
DB-RAD SERIES
21779-A	DB-RAD 500 – 2	4.9	322	64	64	260
21783-A	DB-RAD 1000 – 2	5.3	330	64	64	260
21787-A	DB-RAD 1500 – 2	5.3	330	69	69	267
24965-A	DB-RAD 3000 – 2	7.1	398	81	81	279

Metric Models (Generally Outside Australia):
The Imperial and Metric range of RAD tools are identical in construction but are identified by their capacity depending on geographic location.
RTS certify all tools in both Imperial and Metric units for ease of use.

PART NO.	TOOL MODEL	SQ DR (INCH)	TORQUE		SPEED	NOISE LEVEL
PART NO.	TOOL MODEL	SQ DR (INCH)	NM	FT.LBS	RPM	DBA
B-RAD SELECT SERIES
28264	B-RAD 700 BRUSHLESS SELECT	¾”	170 – 700	130 – 500	21.5	65
28266	B-RAD 1400 BRUSHLESS SELECT	¾”	300 – 1400	200 – 1000	10.5	65
28267	B-RAD 1400-2 BRUSHLESS SELECT	¾”	300 – 1400	300 – 1000	71	65
28268	B-RAD 2000 BRUSHLESS SELECT	1”	400 – 2000	300 – 1500	6	65
28269	B-RAD 2000-2 BRUSHLESS SELECT	1”	400 – 2000	300 – 1500	19.5	65
28270	B-RAD 4000 BRUSHLESS SELECT	1”	800 – 4000	600 – 3000	3	65
28271	B-RAD 4000-2 BRUSHLESS SELECT	1”	800 – 4000	600 – 3000	20	65
28272	B-RAD 7000 BRUSHLESS SELECT	1 ½”	1350 – 7000	1000 – 5000	2.1	65
DB-RAD SERIES
22876-A	DB-RAD 700 – 2	¾”	70 – 700	50 – 500		80
22878-A	DB-RAD 1400 – 2	¾”	140 – 1400	100 – 1000	19	80
22880-A	DB-RAD 2000 – 2	1”	200 – 2000	150 – 1500	17	80
24966-A	DB-RAD 4000 – 2	1”	400 – 4000	300 – 3000	12	80

PART NO.	TOOL MODEL	WEIGHT	DIMENSION (MM)
PART NO.	TOOL MODEL	KG	A	B	C	D
B-RAD SELECT SERIES
28264	B-RAD 700 BRUSHLESS SELECT	3.5	231	63.5	67	262
28266	B-RAD 1400 BRUSHLESS SELECT	3.5	231	63.5	67	262
28267	B-RAD 1400-2 BRUSHLESS SELECT	4.3	231	63.5	67	262
28268	B-RAD 2000 BRUSHLESS SELECT	4.0	244	69	69	262
28269	B-RAD 2000-2 BRUSHLESS SELECT	4.9	298	69	69	262
28270	B-RAD 4000 BRUSHLESS SELECT	6.0	285	81	81	266
28271	B-RAD 4000-2 BRUSHLESS SELECT	6.7	337	81	81	266
28272	B-RAD 7000 BRUSHLESS SELECT	8.8	295	95	95	272
DB-RAD SERIES
22876-A	DB-RAD 700 – 2	4.9	322	64	64	260
22878-A	DB-RAD 1400 – 2	5.3	330	64	64	260
22880-A	DB-RAD 2000 – 2	5.3	330	69	69	267
24966-A	DB-RAD 4000 – 2	7.1	398	81	81	279

Lightweight – High Quality – Industrial Digital Battery Torque Wrenches

Each DB-RAD Series Battery Torque Wrench comes complete with:

Standard Reaction Arm and Retaining Ring
Two Lithium Ion 18 volt Batteries
Battery Charger
Weatherproof Storage Case

Digital display with programmable preset torque values.
To ensure the highest quality of measurement and accuracy, each DB-RAD Series Battery Torque Wrench comes individually calibrated traceable to ISO 17025 standards.

Corresponding Reaction Arms for DB-RAD 1500-2 Battery Torque Wrench:


Standard (comes with tool) Part Number: 19260	Deep Socket Part Number: 13367	Double Ended Arm Part Number: 13368	Blank Part Number: 13364	Double Ended Blank Part Number: 13365

Battery Powered Torque Series - Rad Torque Tools - A & B

Battery Powered Torque Series - Rad Torque Tools 1

Battery Powered Torque Series - Rad Torque Tools 3

Battery Powered Torque Series - Rad Torque Tools 5
