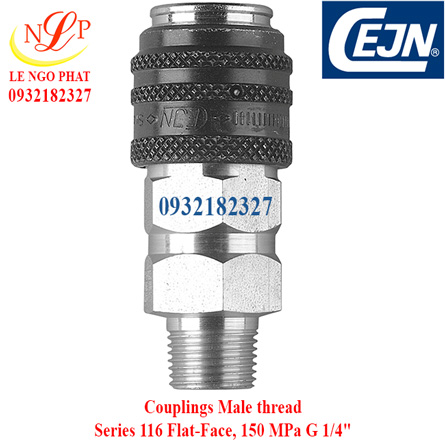

Couplings Male thread Series 116 Flat-Face, 150 MPa G 1/4"

Series 116 Flat-Face, 150 MPa

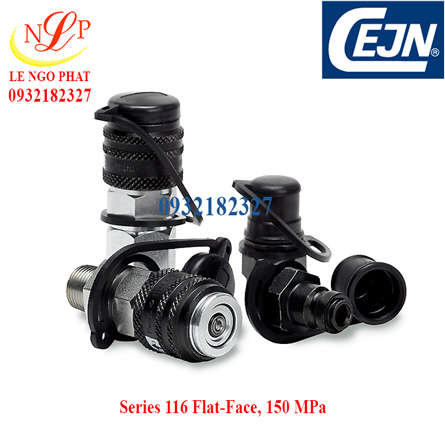

CEJN Series 116 in a Flat-Face design has a working pressure of 150 MPa. Series 116 Flat-Face is primarily recommended for industrial applications, such as bolt tensioners, splitters and clamping tools.

Giá: 0932182327

Mã sản phẩm: 101161269

Model: 101161269

Category Couplings
Description Class Male thread
Remark -
Connection G 1/4"
Length 70.6 mm
Diameter 30 mm
Hexagon 24 mm
Rec. torque (Nm) 50-60 Nm
Rec. seal. method T4*



Nominal flow diameter 2.5 mm (0.1")
Flow capacity 5.3 l/min (1.2 GPM UK)
Max. working pressure 150 MPa
Min. burst pressure 300 MPa
Temperature range -30°C — +100°C (-22°F — +212°F)
Material coupling Hardened, zinc chromate plated steel
Material nipple Hardened, zinc chromate plated steel
Material seal Nitrile (NBR) other sealing materials on request

Flow capacity is measured at 0.4 MPa pressure drop.

*CMS= Cejn metal seal (120° cone), T1= rubber metal seal (19 950 0061), T2= rubber metal seal (19 950 0062), T3= rubber metal seal (19 950 0064), T4= high strength rubber metal seal (19 950 0083), W= cupper washer (09 950 4600).
Check with an authorized CEJN distributor for availability and prices. Other connections and sealing material on request. Some part numbers may be subject to minimum order quantities. CEJN reserves the right to make changes without further notification. Thread connections are listed according to ISO Standards. All measurements are in mm.

Series 116 Flat-Face, 150 MPa

Oil Flow

x: Flow, l/min. (GPM UK)
y: Pressure drop, MPa

Category Couplings
Description Class Male thread
Remark -
Connection G 1/4"
Length 70.6 mm
Diameter 30 mm
Hexagon 24 mm
Rec. torque (Nm) 50-60 Nm
Rec. seal. method T4*



Nominal flow diameter 2.5 mm (0.1")
Flow capacity 5.3 l/min (1.2 GPM UK)
Max. working pressure 150 MPa
Min. burst pressure 300 MPa
Temperature range -30°C — +100°C (-22°F — +212°F)
Material coupling Hardened, zinc chromate plated steel
Material nipple Hardened, zinc chromate plated steel
Material seal Nitrile (NBR) other sealing materials on request

Flow capacity is measured at 0.4 MPa pressure drop.

*CMS= Cejn metal seal (120° cone), T1= rubber metal seal (19 950 0061), T2= rubber metal seal (19 950 0062), T3= rubber metal seal (19 950 0064), T4= high strength rubber metal seal (19 950 0083), W= cupper washer (09 950 4600).
Check with an authorized CEJN distributor for availability and prices. Other connections and sealing material on request. Some part numbers may be subject to minimum order quantities. CEJN reserves the right to make changes without further notification. Thread connections are listed according to ISO Standards. All measurements are in mm.

Series 116 Flat-Face, 150 MPa

Oil Flow

x: Flow, l/min. (GPM UK)
y: Pressure drop, MPa

Category Couplings
Description Class Male thread
Remark -
Connection G 1/4"
Length 70.6 mm
Diameter 30 mm
Hexagon 24 mm
Rec. torque (Nm) 50-60 Nm
Rec. seal. method T4*



Nominal flow diameter 2.5 mm (0.1")
Flow capacity 5.3 l/min (1.2 GPM UK)
Max. working pressure 150 MPa
Min. burst pressure 300 MPa
Temperature range -30°C — +100°C (-22°F — +212°F)
Material coupling Hardened, zinc chromate plated steel
Material nipple Hardened, zinc chromate plated steel
Material seal Nitrile (NBR) other sealing materials on request

Flow capacity is measured at 0.4 MPa pressure drop.

*CMS= Cejn metal seal (120° cone), T1= rubber metal seal (19 950 0061), T2= rubber metal seal (19 950 0062), T3= rubber metal seal (19 950 0064), T4= high strength rubber metal seal (19 950 0083), W= cupper washer (09 950 4600).
Check with an authorized CEJN distributor for availability and prices. Other connections and sealing material on request. Some part numbers may be subject to minimum order quantities. CEJN reserves the right to make changes without further notification. Thread connections are listed according to ISO Standards. All measurements are in mm.

Series 116 Flat-Face, 150 MPa

Oil Flow

x: Flow, l/min. (GPM UK)
y: Pressure drop, MPa
