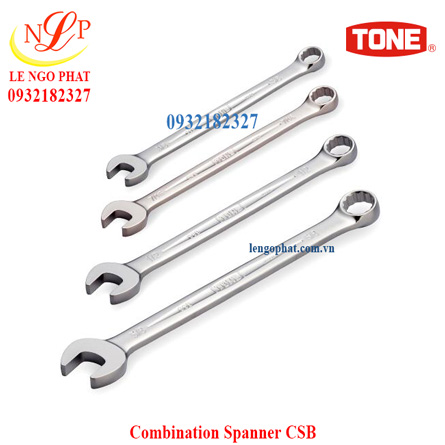

Combination Spanner CSB
Combination Spanner
- Inch Size
It's combination Spanner to possess the speed of Spanner and the strength of offset wrench at the same time.
Fit-up bolting, on the Spanner side, final tightening, on the side of glasses, as if, it's 2 roles of function tool in 1.
The soft curved line design matched with the hand which became easier to use in a facelift was adopted.

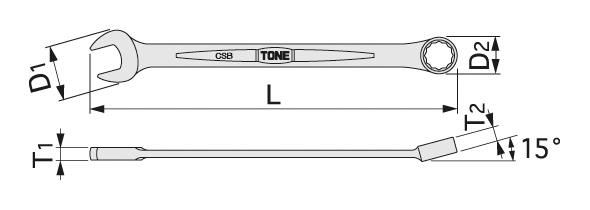

| Models | Across Flat (inch) | Dimensions (mm)D1 | Dimensions (mm)D2 | Dimensions (mm)L | Dimensions (mm)T1 | Dimensions (mm)T2 | Qty./Carton | Weight (g) | MSRP in JP |
|---|---|---|---|---|---|---|---|---|---|
| CSB-08 | 1/4 | 12.0 | 9.0 | 101 | 3.2 | 5.0 | 10 | 15 | \1,370 |
| CSB-09 | 9/32 | 15.0 | 11.0 | 113 | 3.2 | 5.5 | 10 | 20 | \1,370 |
| CSB-10 | 5/16 | 17.0 | 12.0 | 126 | 4.5 | 6.0 | 10 | 25 | \1,370 |
| CSB-11 | 11/32 | 19.0 | 13.5 | 138 | 4.5 | 6.5 | 10 | 30 | \1,460 |
| CSB-12 | 3/8 | 21.0 | 14.5 | 151 | 5.0 | 6.5 | 10 | 45 | \1,620 |
| CSB-13 | 13/32 | 21.0 | 14.5 | 151 | 5.0 | 6.5 | 10 | 45 | \1,620 |
| CSB-14 | 7/16 | 23.0 | 16.5 | 164 | 5.5 | 7.0 | 10 | 55 | \1,620 |
| CSB-16 | 1/2 | 27.0 | 18.5 | 189 | 6.5 | 8.0 | 10 | 85 | \1,820 |
| CSB-18 | 9/16 | 28.5 | 20.0 | 201 | 7.0 | 8.5 | 10 | 100 | \1,920 |
| CSB-19 | 19/32 | 31.0 | 21.5 | 214 | 7.0 | 9.0 | 10 | 115 | \2,090 |
| CSB-20 | 5/8 | 33.0 | 23.0 | 227 | 7.0 | 9.5 | 10 | 135 | \2,290 |
| CSB-22 | 11/16 | 35.0 | 24.5 | 239 | 7.0 | 9.5 | 10 | 160 | \2,430 |
| CSB-24 | 3/4 | 39.0 | 27.0 | 264 | 7.5 | 10.5 | 10 | 195 | \2,750 |
| CSB-25 | 25/32 | 41.0 | 28.5 | 277 | 8.0 | 11.5 | 5 | 225 | \3,000 |
| CSB-26 | 13/16 | 43.0 | 30.0 | 290 | 8.0 | 11.5 | 5 | 250 | \3,100 |
| CSB-28 | 7/8 | 45.0 | 31.5 | 302 | 8.0 | 12.0 | 5 | 275 | \3,620 |
| CSB-30 | 15/16 | 49.0 | 34.0 | 327 | 8.5 | 13.5 | 5 | 305 | \4,270 |
| CSB-32 | 1 | 52.0 | 36.0 | 340 | 9.0 | 14.0 | 5 | 370 | \5,200 |
| CSB-34 | 1-1/16 | 55.5 | 37.5 | 365 | 9.5 | 15.0 | 5 | 455 | \5,960 |
| CSB-36 | 1-1/8 | 60.0 | 42.0 | 390 | 10.0 | 18.5 | 5 | 560 | \7,700 |
| CSB-38 | 1-3/16 | 60.0 | 42.0 | 403 | 10.0 | 18.5 | 5 | 635 | \8,570 |
| CSB-40 | 1-1/4 | 65.0 | 46.0 | 428 | 11.0 | 18.5 | 5 | 735 | \9,780 |
| CSB-42 | 1-5/16 | 67.5 | 47.5 | 441 | 12.0 | 19.0 | 5 | 780 | \11,000 |
| CSB-44 | 1-3/8 | 72.0 | 52.0 | 466 | 13.0 | 20.0 | 5 | 1015 | \12,850 |
| CSB-46 | 1-7/16 | 73.0 | 52.0 | 479 | 13.0 | 20.0 | 5 | 1005 | \16,250 |
| CSB-48 | 1-1/2 | 77.0 | 55.0 | 504 | 15.0 | 22.0 | 1 | 1240 | \17,950 |
| CSB-50 | 1-9/16 | 87.1 | 60.5 | 543 | 15.0 | 22.0 | 1 | 1485 | \18,900 |
| CSB-52 | 1-5/8 | 87.1 | 60.5 | 543 | 15.0 | 22.0 | 1 | 1435 | \19,960 |
| CSB-54 | 1-11/16 | 87.1 | 60.5 | 543 | 17.0 | 24.0 | 1 | 1420 | \20,900 |
| CSB-56 | 1-3/4 | 94.0 | 66.0 | 605 | 17.0 | 24.0 | 1 | 2040 | \22,600 |
| CSB-58 | 1-13/16 | 94.0 | 66.0 | 605 | 17.0 | 24.0 | 1 | 2030 | \23,800 |
| CSB-60 | 1-7/8 | 98.0 | 69.5 | 655 | 18.0 | 26.0 | 1 | 2655 | \25,300 |
| CSB-64 | 2 | 98.0 | 69.5 | 655 | 18.0 | 26.0 | 1 | 2570 | \28,000 |
