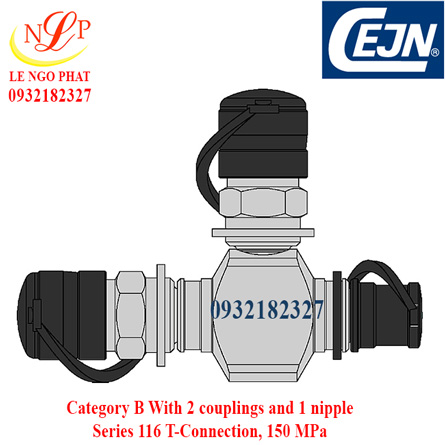

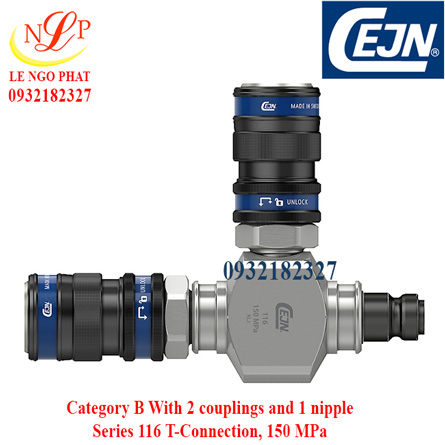

Category B With 2 couplings and 1 nipple Series 116 T-Connection, 150 MPa

Series 116 T-Connection, 150 MPa

CEJN’s Series 116 T-Connection is a lightweight, one-piece coupling and nipple combination for making serial connections on high-pressure hydraulic tools, such as bolt tensioners and cylinders. Replacing traditional porting blocks that can require up to 13 components with at least five different part numbers, the compact T-connection minimizes risk for leakage by reducing potential leak points. A modified seal enables the nipple valve to handle dynamic load while disconnected, without the risk of seal damage. The tested, pre-assembled connection comes ready for installation, thereby saving assembly time and costs.

Giá: 0932182327

Mã sản phẩm: 101163116

Model: 101163116

Category B
Description Class With 2 couplings and 1 nipple
Length 121 mm
Height 89 mm
Depth 28 mm



Nominal flow diameter 2.5 mm (0.1")
Flow capacity 6.0 l/min ( GPM UK)
Max. working pressure 150 MPa
Min. burst pressure 300 MPa
Temperature range -30°C — +100°C (-22°F — +212°F)
Material coupling Hardened, zinc chromate plated steel
Material nipple Hardened, zinc chromate plated steel
Material seal Nitrile (NBR) other sealing materials on request

Flow capacity is measured at 0.4 MPa pressure drop

Check with an authorized CEJN distributor for availability and prices. Other connections and sealing material on request. Some part numbers may be subject to minimum order quantities. CEJN reserves the right to make changes without further notification. Thread connections are listed according to ISO Standards. All measurements are in mm.
