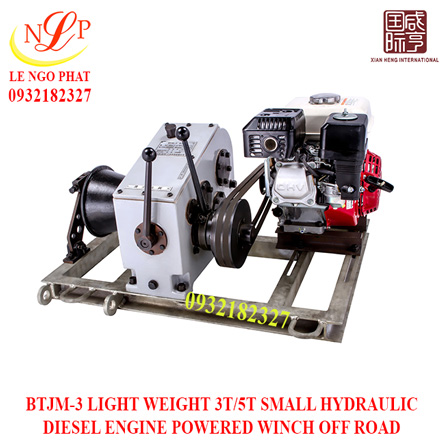

BTJM-3 LIGHT WEIGHT 3T/5T SMALL HYDRAULIC DIESEL ENGINE POWERED WINCH OFF ROAD

BTJM-3 LIGHT WEIGHT 3T/5T SMALL HYDRAULIC DIESEL ENGINE POWERED WINCH OFF ROAD

BTJM-3 LIGHT WEIGHT 3T/5T SMALL HYDRAULIC DIESEL ENGINE POWERED WINCH OFF ROAD

Model: BTJM-3

Pull force :

+ High gear: 15KN

+ Low gear: 30KN

Speed(m/min)

+ CW high gear: 12

+ CW slow gear: 5

+ CCW: -

Weight: 80kg

Available commodity

Certificate of Origin (CO) issued by the manufacturer accompanying the product

Giá: 0932182327

Mã sản phẩm: BTJM-3

Model: BTJM-3

Technical Date:

Model	Pull force		Speed(m/min)			Weight
Model	high gear	low gear	CW high gear	CW slow gear	CCW	Weight
BTJM-3	15KN	30KN	12	5	-	80kg
BTJM-5	25KN	50KN	9	4	-	140kg

Features:

1. Apply to tract and hoist machinery equipment, post and telecommunications tower, and cable laying in field construction

2. Use Japanese Yamaha or Honda power, strong and durable

3. Light weight, big traction, especially suitable for complex construction area where large vehicles cannot enter

TỪ KHÓA: C-C1 SERIES, LJG SERIES, SHL SERIES, SDTG, SHG, SKL SERIES, P SERIES, 2TON, 3TON-G, SBT-5, SBT-51, SBT-3A, CPEM-9031C, BTJM-3, DS-180, IR-SERIES, SBT-10, SBT-20, SBT-5, SBT-5A, SBT-3A, TCS-5, PCS-25DL, EXZ-150, CỤNG CỤ KÉO CÁP CON LĂN, DỤNG CỤ KÉO CĂN DÂY CÁP, MÁY KÉO CÁP, DỤNG CỤ HỘ TRỢ KÉO CÁP

Technical Date:

Model	Pull force		Speed(m/min)			Weight
Model	high gear	low gear	CW high gear	CW slow gear	CCW	Weight
BTJM-3	15KN	30KN	12	5	-	80kg
BTJM-5	25KN	50KN	9	4	-	140kg

Features:

1. Apply to tract and hoist machinery equipment, post and telecommunications tower, and cable laying in field construction

2. Use Japanese Yamaha or Honda power, strong and durable

3. Light weight, big traction, especially suitable for complex construction area where large vehicles cannot enter

Technical Date:

Model	Pull force		Speed(m/min)			Weight
Model	high gear	low gear	CW high gear	CW slow gear	CCW	Weight
BTJM-3	15KN	30KN	12	5	-	80kg
BTJM-5	25KN	50KN	9	4	-	140kg

Features:

1. Apply to tract and hoist machinery equipment, post and telecommunications tower, and cable laying in field construction

2. Use Japanese Yamaha or Honda power, strong and durable

3. Light weight, big traction, especially suitable for complex construction area where large vehicles cannot enter

DOWNLOAD Catalogue
