B-RAD EXT-R 700

B-RAD EXT-R Battery Torque Wrenches

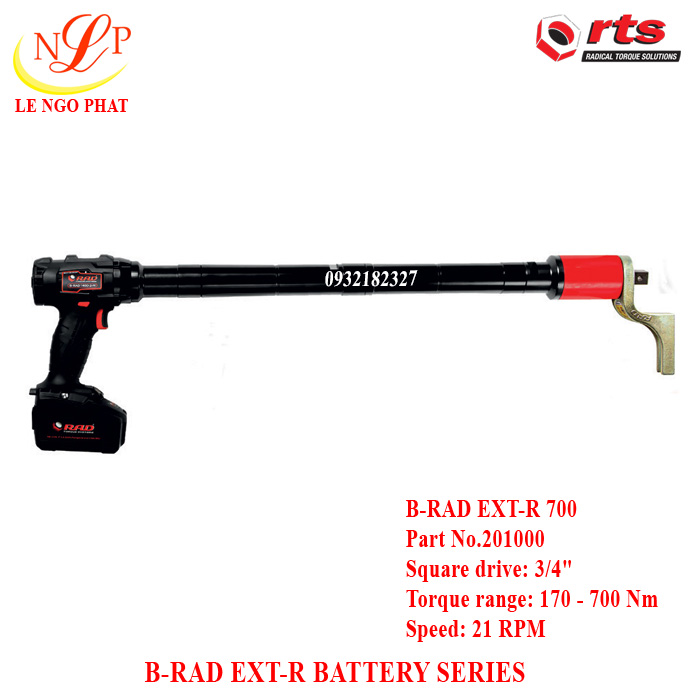

B-RAD EXT-R 700
Tool Model: B-RAD EXT-R 700
Part No.201000
• TORQUE RANGE: 170 - 700 Nm
• SPEED: 21 RPM
• WEIGHT: 5,9 Kg with battery, excluding reaction arm and impact socket
• SQUARE DRIVE: 3/4 inch square drive
• BATTERY: Two 18V Li-ion batteries 5.2 Ah/93 Wh
• EASE OF USE: Adjustable handle for more grip
• NOISE LEVEL: Maximum 65 dB
• REPEATABILITY ON SAME JOINT *: +/- 3%.
  * Test results from RAD’s certificated calibration lab

Giá: 0932182327

Mã sản phẩm: SÚNG SIẾT ỐC BULONG DÙNG PIN

Model: 170 - 700 Nm

Kết nối facebook Kết nối Youtube Kết nối Google + Kết nối Twitter Kết nối Intagrams Kết nối Pinterest

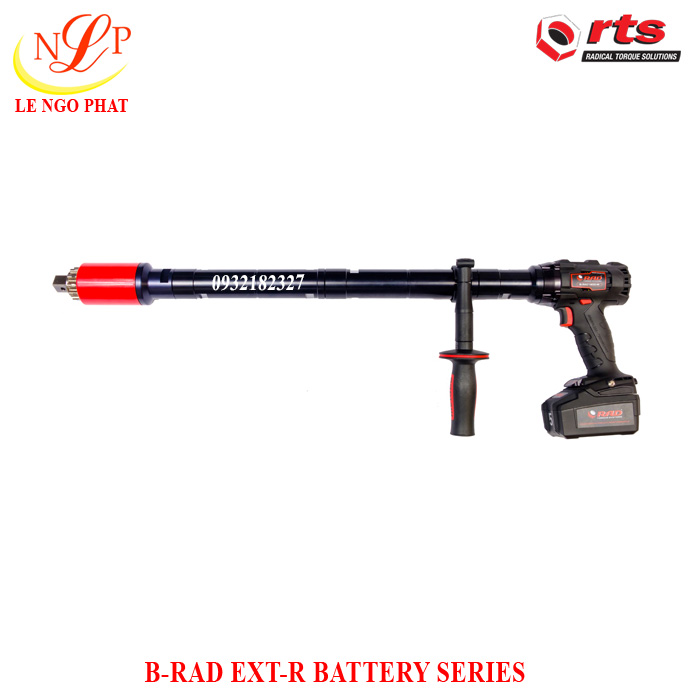

B-RAD EXT-R BATTERY SERIES

Torque range: 175 – 1.400 Nm

With more than 25 years in multiplier bolting equipment, RAD understands that heavy duty industries like railway need powerful and reliable tools. RAD’s proven gearbox technology combined with the latest battery technology has resulted in the B-RAD EXT-R series.

Part
No.		 Model Square
drive		 Torque range Speed

Noise
Level
Inch Nm RPM DBA
201000 B-RAD EXT-R 700 ¾" 170 - 700 Nm 21 65
201001 B-RAD EXT-R 700-2 ¾" 170 - 700 Nm 83 65
201003 B-RAD EXT-R 1400 ¾" 300 - 1.400 Nm 10 65
201004 B-RAD EXT-R 1400-2 ¾" 300 - 1.400 Nm 71 65

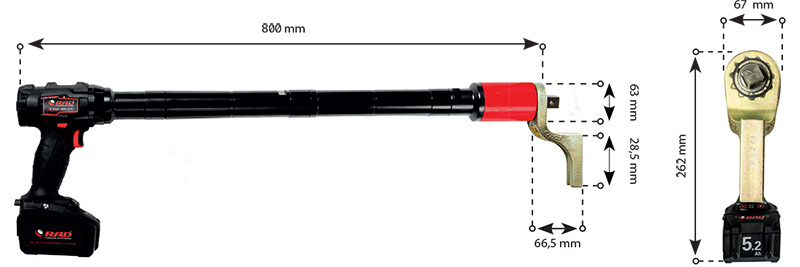

Part
No.		 Model Square
drive		 Weight Dim. A Dim. B Dim. C Dim. D
201000 B-RAD EXT-R 700 ¾" 5,9 Kg 800 mm 63 mm 67 mm 262 mm
201001 B-RAD EXT-R 700-2 ¾" 6,5 Kg 860 mm 63 mm 67 mm 262 mm
201003 B-RAD EXT-R 1400 ¾" 5,9 Kg 810 mm 63 mm 67 mm 262 mm
201004 B-RAD EXT-R 1400-2 ¾" 6,5 Kg 860 mm 63 mm 67 mm 262 mm



TOOL KIT INCLUDING:

• B-RAD EXT-R 700
• Standard reaction arm (PN: 19260)
• Two retaining rings (PN: 12733)
• Two batteries with quick charger
• Calibration certifi cate
• Usermanual
• Safety instructions on USB stick
• Weatherproof storage case.



Based on the B-RAD SELECT BL, the EXT-R version of the B-RAD allows you to work for hours on Li-Ion power. No more lugging along a heavy tool that’s emitting exhaust fumes, heavy vibrations or noise. Each B-RAD EXT-R is calibrated to 5% torque accuracy. The battery monitoring system will ensure that this accuracy is guaranteed until the battery runs low.

The B-RAD EXT-R series comes with two simple buttons to increase or decrease the value by 10 Nm. The set torque value is displayed on the four- digit display.

B-RAD EXT-R RAIL specifications:

  • Brushless motor
  • Available in single and automatic 2-speed gearbox
  • Low battery warning
  • Controlled bolting – repeatability of +/- 3%
  • Extremely low noise level – only 65 dB
  • Automatic reaction arm release
  • Up to 70 RPM
  • Possibility to set torque in 1-50 steps instead of torque settings
  • Lithium-ion 18V / 5.2 Ah battery technology
  • Optional:

B-RAD EXT-R toolkit include:

  • Standard reaction arm and retaining ring
  • Tool handle for easy handling
  • 2 Lithium-ion 18V / 5.2 Ah batteries with charger
  • Weatherproof storage case
  • User manual
  • Calibration certificate

Optional 8.0 Ah LiHD high-performance battery pack

The combination of new high-performance battery cells and completely newly developed electronic components in the pack ensure that maximum power remains available for a longer time. So you can now tighten even more bolts compared to the already impressive performing 5.2 Ah batteries.

Unfortunately, because of the increased power output, it is not possible to airfreight the 8.0 Ah battery due to IATA restrictions. These restrictions do not apply to sea and overland transport. Therefore RAD’s battery powered torque wrenches will not be equipped as standard with the LiHD 8.0 Ah battery pack but with the current 5.2 Ah battery pack.

Part number 8.0 Ah LiHD battery pack: 200473

SUITABLE REACTION ARMS FOR B-RAD EXT-R 700:

Standard
PN: 19260

 Deep socket
PN: 13367

Double ended
PN: 13368

Blank
PN: 13364

 Double ended blank
PN: 13365

Safety sliding
PN: 25243

Từ khóa: B-RAD EXT-R 700, B-RAD EXT-R 700-2, B-RAD EXT-R 1400, B-RAD EXT-R 1400-2
