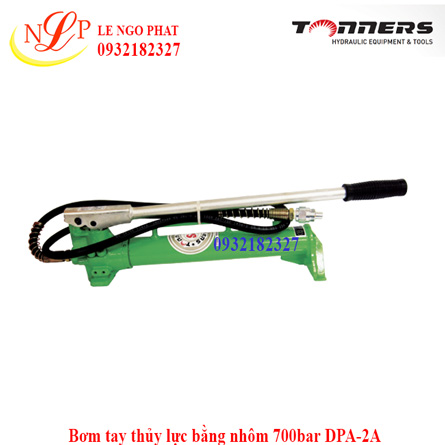

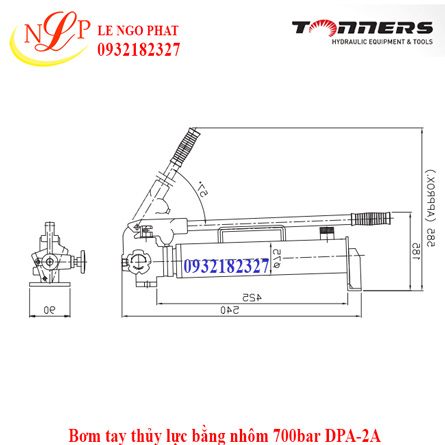

Bơm tay thủy lực bằng nhôm 700bar DPA-2A
Feature
- convenient to carry as it is ultra lightweight
and small size
- especially, it is widely used in the shipbuilding
and construction field
- the hand pump main body, lever and handle
part is strong as it is made by welded joint
|
Model No. |
Working Pressure (kg/cm²) |
Output Oil Capacity (cc/cycle) |
Output Port |
Oil Tank Capacity |
Weight (kg) |
|||
|
High |
Low |
High |
Low |
Usable Oil Volume (ℓ) |
Total Oil Volume (ℓ) |
|||
|
DPA-1B |
700 |
20 |
2.3 |
13 |
PT3/8” |
0.8 |
1 |
5.5 |
|
DPA-2A |
700 |
20 |
2.3 |
13 |
PT3/8” |
1.8 |
2.5 |
6.5 |
|
Model No. |
Working Pressure (kg/cm²) |
Output Oil Capacity (cc/cycle) |
Output Port |
Oil Tank Capacity |
Weight (kg) |
|||
|
High |
Low |
High |
Low |
Usable Oil Volume (ℓ) |
Total Oil Volume (ℓ) |
|||
|
DPA-1B |
700 |
20 |
2.3 |
13 |
PT3/8” |
0.8 |
1 |
5.5 |
|
DPA-2A |
700 |
20 |
2.3 |
13 |
PT3/8” |
1.8 |
2.5 |
6.5 |
|
Model No. |
Working Pressure (kg/cm²) |
Output Oil Capacity (cc/cycle) |
Output Port |
Oil Tank Capacity |
Weight (kg) |
|||
|
High |
Low |
High |
Low |
Usable Oil Volume (ℓ) |
Total Oil Volume (ℓ) |
|||
|
DPA-1B |
700 |
20 |
2.3 |
13 |
PT3/8” |
0.8 |
1 |
5.5 |
|
DPA-2A |
700 |
20 |
2.3 |
13 |
PT3/8” |
1.8 |
2.5 |
6.5 |
