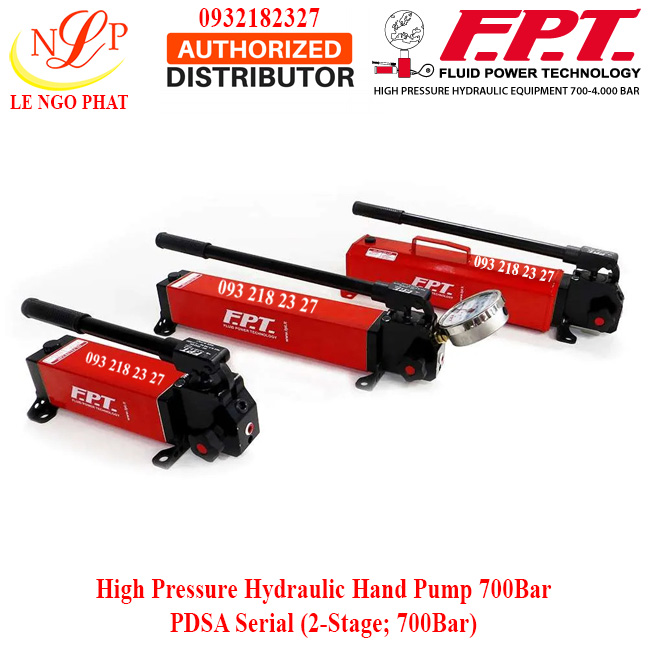

BƠM TAY THỦY LỰC 700BAR PDSA-40 F.P.T - ITALY

High pressure hydraulic hand pumps Two speed hand pump aluminium Model: PDSA-40 Áp suất làm việc max: 700Bar Thể tích bình chứa dầu sử dụng: 1.8 lít Bơm tay thủy lực 700Bar 2 lưu lượng Vật liệu nhôm, kích thước nhỏ gọn, trọng lượng nhẹ Lưu lượng: 40cm3@25Bar Lưu lượng: 3cm3@700Bar Lỗ ren đầu ra kết nối đồng hồ: G 1/2” Lỗ ren đầu ra kết nối đầu dầu ra: 3/8”NPT Nhà sản xuất: F.P.T (Fluid Power Technology S.r.l) Xuất xứ: Made in ITALY

Giá: 0932182327

Mã sản phẩm: BƠM TAY THỦY LỰC 700BAR

Model: PDSA-40

PDSA-40 High pressure hydraulic hand pumps 700Bar:

Two speed hand pump aluminium:

• High pressure hand pumps manufactured in light alloy of aeronautical grade aluminum to minimize the weight.
• Two speed version first stage 40 cc flow rate for rapid approach and 3 cc at the second stage. For maximum speed during operations.
• Pressure relief valve integrated in the pump body for maximum operator safety.
• High performance, low weight and excellent ergonomics.
• Integrated pressure gauge connection for direct assembly of measuring instrument.
• Oil filler cap with integrated breather. Tough pins with trough-holes for attachment to machinery or structures.
• Surface treatments to guarantee total reliability in the most difficult environments and maximum duration.

MODEL PRESSURE
1
ST/2ND
STAGE
OIL
FLOW
1
ST/2ND
STAGE
RESERVOIR
CAPACITY
USABLE
OIL
DIMENSIONS
(mm)
WEIGHT
bar cm3 litres litres A B C D E F G H M P kg
PDSA-40C 25/700 40/1 1 0,9 392,5 378 240 190 130 130 102 3/8”NPT 13 G 1/2” 5,5
PDSA - 40 25/700 40/3 1,8 1,6 590 477 435 200 130 130 102 3/8" NPT 13 G 1/2" 7,8
PDSA - 40 L4 25/700 40/2,6 4 3,2 578 588 471,5 201 102 170 145 3/8" NPT 13 G 1/2" 11
PDSA - 40 L8 25/700 40/2,6 8 6,3 578 588 471,5 201 102 290 265 3/8" NPT 13 G 1/2" 16,5
PDS - 120 - SE 20/700 122/4,8 9 7,5 702 617 326 269 253 220 - 3/8" NPT - G 1/2" 22,5



Installation manual:
