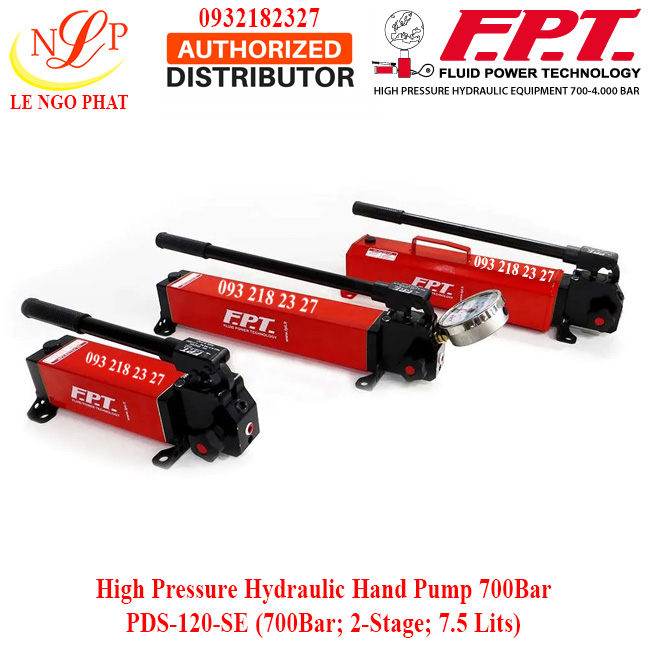

Two speed hand pump aluminium:
• High pressure hand pumps manufactured in light alloy of aeronautical grade aluminum to minimize the weight.
• Two speed version first stage 40 cc flow rate for rapid approach and 3 cc at the second stage. For maximum speed during operations.
• Pressure relief valve integrated in the pump body for maximum operator safety.
• High performance, low weight and excellent ergonomics.
• Integrated pressure gauge connection for direct assembly of measuring instrument.
• Oil filler cap with integrated breather. Tough pins with trough-holes for attachment to machinery or structures.
• Surface treatments to guarantee total reliability in the most difficult environments and maximum duration.
MODEL | PRESSURE 1ST/2ND STAGE |
OIL FLOW 1ST/2ND STAGE |
RESERVOIR CAPACITY |
USABLE OIL |
DIMENSIONS (mm) |
WEIGHT | |||||||||
bar | cm3 | litres | litres | A | B | C | D | E | F | G | H | M | P | kg | |
PDSA-40C | 25/700 | 40/1 | 1 | 0,9 | 392,5 | 378 | 240 | 190 | 130 | 130 | 102 | 3/8”NPT | 13 | G 1/2” | 5,5 |
PDSA - 40 | 25/700 | 40/3 | 1,8 | 1,6 | 590 | 477 | 435 | 200 | 130 | 130 | 102 | 3/8" NPT | 13 | G 1/2" | 7,8 |
PDSA - 40 L4 | 25/700 | 40/2,6 | 4 | 3,2 | 578 | 588 | 471,5 | 201 | 102 | 170 | 145 | 3/8" NPT | 13 | G 1/2" | 11 |
PDSA - 40 L8 | 25/700 | 40/2,6 | 8 | 6,3 | 578 | 588 | 471,5 | 201 | 102 | 290 | 265 | 3/8" NPT | 13 | G 1/2" | 16,5 |
PDS - 120 - SE | 20/700 | 122/4,8 | 9 | 7,5 | 702 | 617 | 326 | 269 | 253 | 220 | - | 3/8" NPT | - | G 1/2" | 22,5 |
Installation manual:
