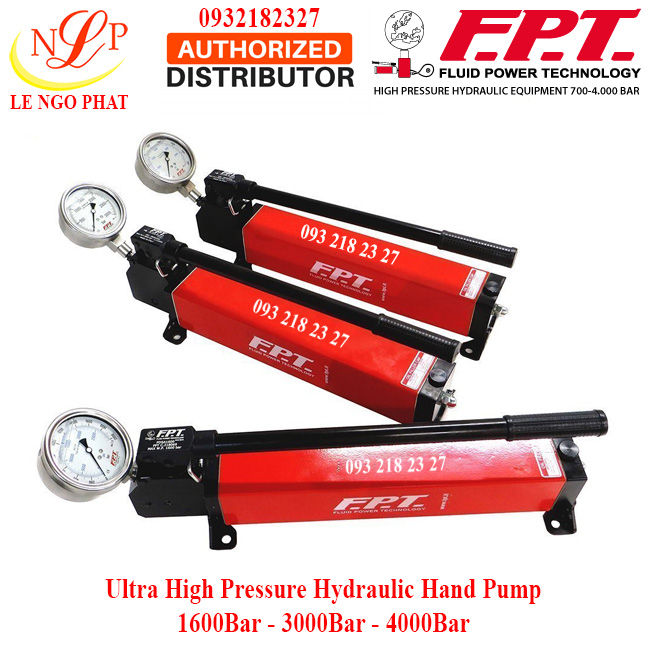

BƠM TAY THỦY LỰC 3000BAR PDSA-3000 F.P.T - ITALY

Ultra high pressure hydraulic hand pumps Model: PDSA-3000 Áp suất làm việc max: 3000Bar Thể tích bình chứa dầu sử dụng: 1.8 lít Bơm tay thủy lực 3000Bar 2 lưu lượng Lưu lượng: 40cm3@16Bar; 0.5cm3@3000Bar Lỗ ren đầu ra kết nối đồng hồ: 9/16”-18 UNF" Lỗ ren đầu ra kết nối đầu dầu ra: 3/4"-16 UNF" Nhà sản xuất: F.P.T (Fluid Power Technology S.r.l) Xuất xứ: Made in ITALY

Giá: 0932182327

Mã sản phẩm: BƠM TAY THỦY LỰC 3000BAR

Model: PDSA-3000

PDSA-3000 Ultra high pressure hydraulic hand pumps 3000Bar:

Hand pumps for very high pressures: 1.600 - 3.000 - 4.000 bar, aluminium
• High pressure hand pumps manufactured in light alloy of aeronautical grade aluminum to minimize the weight.
• Two-stage versions 1.600 bar and 3.000 bar with first stage 40 cc oilflow for rapid approach and second stage 0.5 and 1 cc. And 0.5 cc per stroke 4,000 bar single-stage version.
• Pump body integrated pressure relief valve for maximum operator safety.
• Very high pressure, high performance, reduced effort on the handle, excellent weight and ergonomics.
• Integrated pressure gauge connection for direct mounting of the measuring tool.
• Oil filler cap with integrated breather. Tough pins with trough-holes for attachment to machinery or structures.
• Surface treatments to guarantee total reliability in the most difficult environments and maximum duration.

PUMP

MODEL

PRESSURE
1ST/2ND
STAGE

OIL FLOW
1ST/2ND
STAGE

RESERVOIR
CAPACITY

USABLE
OIL

DIMENSIONS
(mm)

WEIGHT

bar

cm3

litres

litres

A

B

C

D

E

F

G

H

M

P

kg

TWO-SPEED

PDSA-1600

25/1600

40/1

1,8

1,6

577

588,5

436

200

130

130

102

1/4" GAS

13

1/2” GAS

7,8

TWO-SPEED

PDSA-3000

16/3000

40/0,5

1,8

1,6

577

588,5

436

200

130

130

102

3/4"-16 UNF

13

9/16”-18 UNF

7,8

SINGLE-SPEED

PMS-4000

4000

0,5

1,8

1,6

577

588,5

436

200

130

130

102

9/16”-18 UNF

13

9/16”-18 UNF

7,8



Installation manual:

Configuration No.1 – Quick coupler on pump
Configuration No.2 –Flex hose directly assembled on the pump



1500 Bar
Config.1

1500 Bar
Config.2

1600 Bar
Config.1

1600 Bar
Config.2

2500 Bar
Config.1

2500 Bar
Config.2

3000 Bar
Config.1

3000 Bar
Config.2

4000 Bar
Config.1

4000 Bar
Config.2

ITEM

CODE

CODE

CODE

CODE

CODE

CODE

CODE

CODE

CODE

CODE

1

01PDSA1600

01PDSA1600

01PDSA1600

01PDSA1600

01PDSA3000

01PDSA3000

01PDSA3000

01PDSA3000

01PMS4000

01PMS4000

2

-

-

-

-

0922225016

0922225016

0922225016

0922225016

0922225016

0922225016

3

01MD200G

01MD200G

01MD200G

01MD200G

01MD300G

01MD300G

01MD300G

01MD300G

01MD400G

01MD400G

4

0925613265

-

0925613265

-

09299199501611

0929112241

0922225257

0922225482

0922225016

-

5

07GR15F



07GR20F



07GR25F



07GR30F



07GR40F-M16

-

6

07GR15M

-

07GR20M

-

07GR25M

-

07GR30M

-

07GR40M-M16

-

7

01TFR#/1800

01TFR#/1800

01TFR#/1800

01TFR#/1800

01TFR#/2500

01TFR#/2500

01TFR#/3000M16D

01TFR#/3000M16G

01TFR#/4000M16D

01TFR#/4000M16H

8

07GR15F

07GR15F

07GR20F

07GR20F

07GR25F

07GR25F

07GR30F

07GR30F

07GR40F-M16

07GR40F-M16

9

Utilization

Utilization

Utilization

Utilization

Utilization

Utilization

Utilization

Utilization

Utilization

Utilization

# insert length of the hose expressed in meters.
