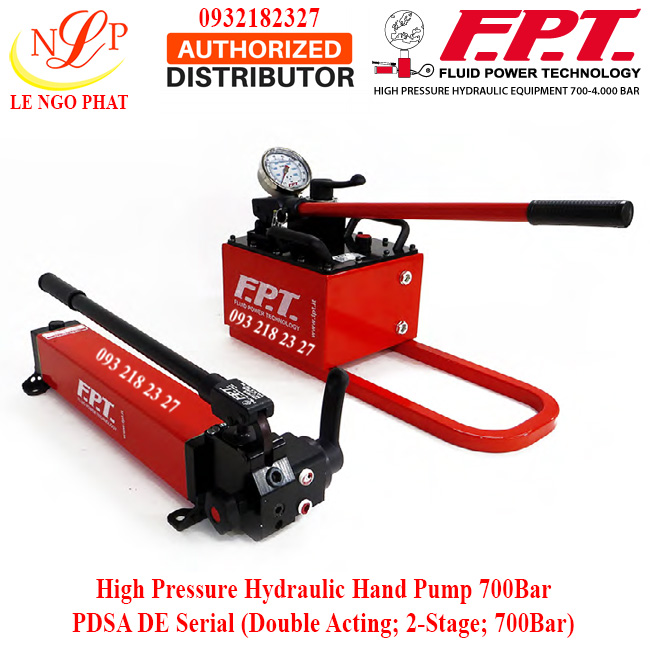

BƠM TAY THỦY LỰC 2 CHIỀU 700BAR PDS-120-DE F.P.T - ITALY
PDS-120-DE High pressure double acting hydraulic hand pumps 700Bar:
Two speed hand pump aluminium, for double acting tools working pressure max 700Bar
• High pressure hand pumps manufactured in light alloy of aeronautical grade aluminum to minimize the weight.
• Double stage version for double acting cylinders, with first stage 40 cc flow rate for rapid approach and 3 cc at the second stage. For maximum speed during operations.
• Pressure relief valve integrated in the pump body for maximum operator safety.
• High performance, low weight and excellent ergo-nomics.
• Integrated pressure gauge connection for direct as-sembly of measuring instrument.
• Oil filler cap with integrated breather. Tough pins with trough-holes for attachment to machinery or struc-tures.
• Surface treatments to guarantee total reliability in the most difficult environments and maximum duration
| MODEL | PRESSURE 1ST/2ND STAGE |
OIL FLOW 1ST/2ND STAGE |
RESERVOIR |
USABLE OIL |
DIMENSIONS (mm) |
WEIGHT | |||||||||
| bar | cm3 | litres | litres | A | B | C | D | E | F | G | H | M | P | kg | |
| PDSA-40-DE | 25/700 | 40/3 | 1,8 | 1,6 | 590 | 477 | 435 | 200 | 207 | 130 | 102 | 3/8" NPT | 13 | G 1/2" | 9 |
| PDSA-40-DE L4 | 25/700 | 40/2,6 | 4 | 3,2 | 578 | 588 | 471,5 | 201 | 102 | 170 | 145 | 3/8" NPT | 13 | G 1/2" | 12 |
| PDSA-40-DE L8 | 25/700 | 40/2,6 | 8 | 6,3 | 578 | 588 | 471,5 | 201 | 102 | 290 | 265 | 3/8" NPT | 13 | G 1/2" | 17,5 |
| PDS-120-DE | 20/700 | 122/4,8 | 9 | 7,5 | 702 | 617 | 326 | 269 | 253 | 220 | - | 3/8" NPT | - | G 1/2" | 22,5 |
Installation manual:
