Đặc điểm kỹ thuật bảo dưỡng động cơ hàng hải, để sử dụng với xi lanh tác động đơn. Cung cấp G1 / 4 "

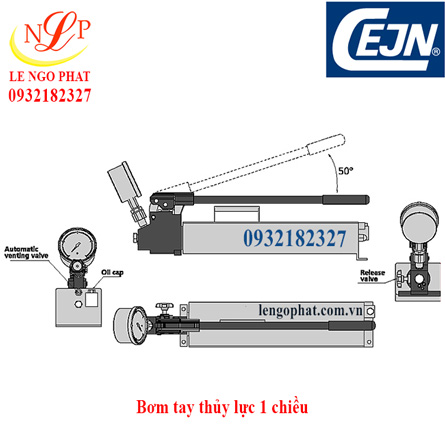

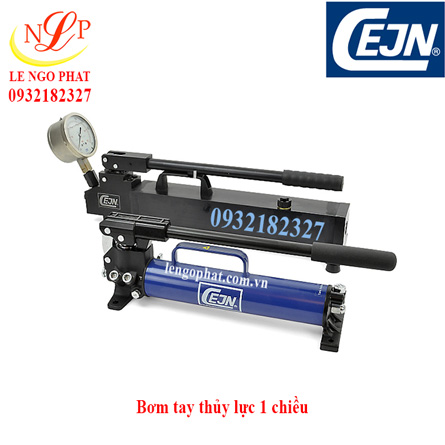

Bơm tay thủy lực 1 chiều
Áp suất làm việc tối đa 2500 bar
Thể tích dầu sử dụng 3.7 lít
Thể tích bình dầu sử dụng 4.0 lít
Kích thước: 670*130*185
Trọng lượng: 11.7 Kg
Xuất xứ: CEJN - SWEDEN
Category | Hand pump |
Description Class | Twin stage, 250MPa |
Max working pressure | 250.0 MPa |
Pressure Gauges | Gauge included |
Tank volume | 4,0 l |
Description | Marine engine maintenance specification, for use with single acting cylinders. Supply G1/4" |
1. INTENDED USE
Basic configuration of pump, cylinder and hydraulic control.
- Some examples of possible system configurations using CEJN hydraulic products.
- System configuration such as production process, facility maintenance process and press lifting is
possible.
- CEJN hydraulic systems can be configured in various ways according to the application.
- We will provide you the best products possible.
Hand Pump System
- The most basic systems configuration is a cylinder drive using a hand pump.
1) Cylinder (single acting / double acting type can be used): Mechanical actuator using power from
hydraulic fluid.
2) Hand Pump: Device for converting fluid energy into mechanical energy.
3) Gauge Block : Parts for combining gauge and pump.
4) Manual Valve : Valve for controlling double acting cylinder.
5) Hose: To transfer fluid.
6),7) Coupler : Connector hose with cylinder.
8) Gauge : Measurement for force and pressure.
2. DESCRIPTION OF PRODUCTS
2-1. SPECIFICATION
Model No. | Maximum Pressure (bar) | Volume Per Stroke (cc) | Piston Stroke (mm) | Usable Oil Capacity (cc) | Oil Tank Capacity (cc) | Max. Handle Effort (kg) | Dimensions (mm) | Max. Weight (kg) | |
Low Pressure | High Pressure | ||||||||
CTHP-700-07 | 700 | 20.9 (at 20 bar) | 2.47 cc (at 700 bar) | 26 | 500 | 700 | 44 | 516*120*163 | 4.6 |
CTHP-700-10 | 700 | 20.9 (at 20 bar) | 2.47 cc (at 700 bar) | 26 | 800 | 1000 | 35 | 586*120*163 | 5.3 |
CTHP-800-10 | 800 | 20.9 (at 20 bar) | 2.47 cc (at 800 bar) | 26 | 800 | 1000 | 35 | 586*120*163 | 5.3 |
CTHP-700-20 | 700 | 32.7 cc (at 20 bar) | 2.47 cc (at 700 bar) | 26 | 1700 | 2000 | 35 | 632*120*182.5 | 7.2 |
CTHP-700-27 | 700 | 41cc (at 20 bar) | 2.94 cc (at 700 bar) | 26 | 2400 | 2700 | 38.5 | 644*120*200.5 | 8.6 |
CTHP-150-27 | 150 | 11.7 cc | at 150 bar | 26 | 2400 | 2700 | 38.5 | 644*120*200.5 | 8.6 |
CTHP-700-53 | 700 | 41cc (at 20 bar) | 2.94 cc (at 700 bar) | 26 | 5000 | 5300 | 38.5 | 644*170*200.5 | 14.5 |
CTHP-1800 | 1800 | 20 cc (at 20 bar) | 0.8 cc (at 1800 bar) | 26 | 1900 | 2200 | 35 | 670*120*197 | 8.1 |
CTHP-2500 | 2500 | 20 cc (at 20 bar) | 0.8 cc (at 2500 bar) | 26 | 1900 | 2200 | 45 | 670*120*197 | 8.1 |
CTHP-2800 | 2800 | 20 cc (at 20 bar) | 0.8 cc (at 2800 bar) | 26 | 1900 | 2200 | 51.8 | 670*120*197 | 8.1 |
CTHP-1800-20 | 1800 | 20 cc (at 20 bar) | 0.8 cc (at 1800 bar) | 26 | 1700 | 2000 | 33.9 | 670*120*178 | 7.7 |
CTHP-2500-20 | 2500 | 20 cc (at 20 bar) | 0.8 cc (at 2500 bar) | 26 | 1700 | 2000 | 42.9 | 670*120*178 | 7.7 |
CTHP-2800-20 | 2800 | 20 cc (at 20 bar) | 0.8 cc (at 2800 bar) | 26 | 1700 | 2000 | 48.3 | 670*120*178 | 7.7 |
CTHP-1800-40 | 1800 | 20 cc (at 20 bar) | 0.8 cc (at 1800 bar) | 26 | 3700 | 4000 | 33.9 | 670*130*185 | 11.7 |
CTHP-2500-40 | 2500 | 20 cc (at 20 bar) | 0.8 cc (at 2500 bar) | 26 | 3700 | 4000 | 42.9 | 670*130*185 | 11.7 |
CTHP-2800-40 | 2800 | 20 cc (at 20 bar) | 0.8 cc (at 2800 bar) | 26 | 3700 | 4000 | 48.3 | 670*130*185 | 11.7 |
