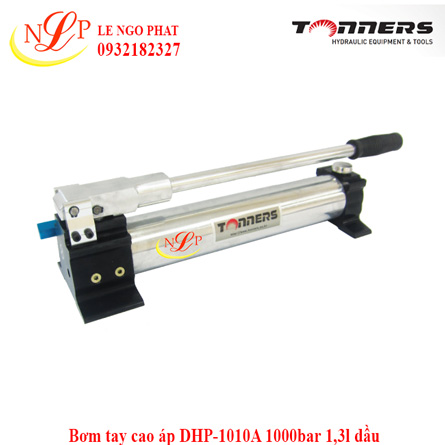

Bơm tay cao áp DHP-1010A 1000bar 1,3l dầu

Bơm tay cao áp DHP-1010A 1000bar 1,3l dầu

Feature
- it is used in all parts applying bolt tensioner
and ultra high pressure
- it is light as aluminum material and
convenient for moving work
- pump usage pressure : 1,000bar, 1,500bar,
2,000bar

Giá: 0932182327

Mã sản phẩm: DHP-1010A

Model: DHP-1010A

Model No.	Pressure (Bar)		Oil Displacement / Stroke (cc)		Usable Oil Capacity (ℓ)	Weight (kg)
Model No.	1st Stage	2nd Stage	1st Stage	2nd Stage	Usable Oil Capacity (ℓ)	Weight (kg)
DHP-1010A	60	1000	24.6	3.1	1.3	5
DHP-1010B	60	1000	24.6	3.1	2	6
DHP-1508A	60	1500	24.6	2	1.3	5
DHP-1508B	60	1500	24.6	2	2	6
DHP-2008A	60	2000	24.6	2	1.3	5
DHP-2008B	60	2000	24.6	2	2	6
