It's possible to change the small part and the part Oku danced according to the operational circumstances.

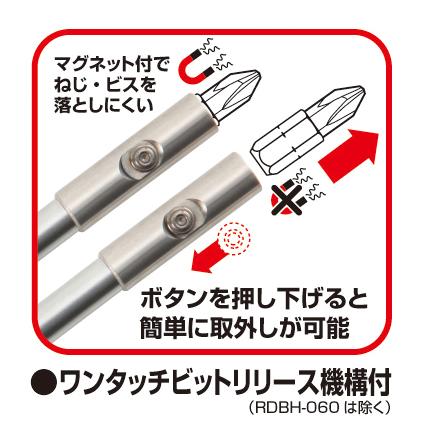

It's also convenient for maintenance of a screw and a screw because I get the structure in which magnetic force also equals a bit point.
With a low let convenient for fast forwarding, (RDBH-060 is removed.)

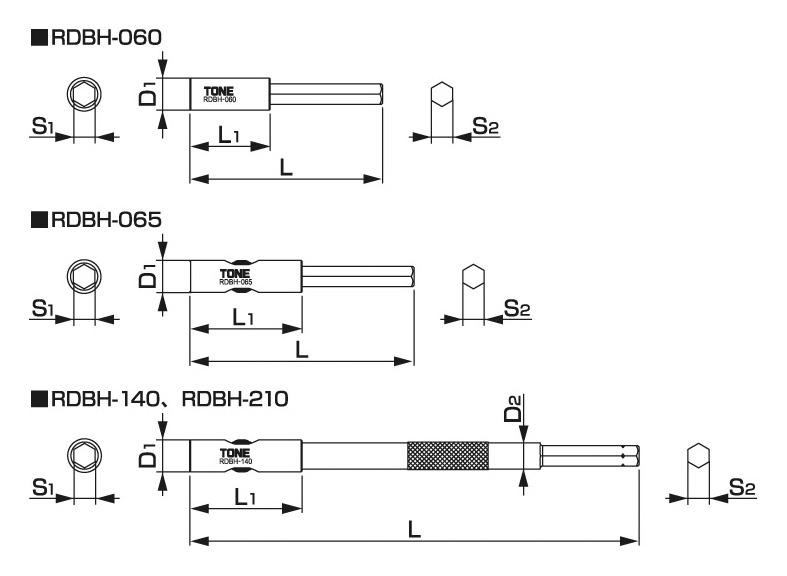

| Models | Across flat (mm)S1 | Bit two side width (mm) small 2 | dimensions (mm)D1 | dimensions (mm)D2 | dimensions (mm)L | dimensions (mm)L1 | Qty./Carton | weight (g) | MSRP in JP |
|---|---|---|---|---|---|---|---|---|---|
| RDBH-060 | 6.35 | 6.35 | 10 | - | 60 | 25 | 10 | 21 | \975 |
| RDBH-065 | 6.35 | 6.35 | 10 | - | 65 | 35 | 10 | 23 | \1,530 |
| RDBH-140 | 6.35 | 6.35 | 10 | 8.3 | 140 | 35 | 10 | 55 | \1,770 |
| RDBH-210 | 6.35 | 6.35 | 10 | 8.3 | 210 | 35 | 10 | 85 | \2,290 |
| Models | Across flat (mm)S1 | Bit two side width (mm) small 2 | dimensions (mm)D1 | dimensions (mm)D2 | dimensions (mm)L | dimensions (mm)L1 | Qty./Carton | weight (g) | MSRP in JP |
|---|---|---|---|---|---|---|---|---|---|
| RDBH-060 | 6.35 | 6.35 | 10 | - | 60 | 25 | 10 | 21 | \975 |
| RDBH-065 | 6.35 | 6.35 | 10 | - | 65 | 35 | 10 | 23 | \1,530 |
| RDBH-140 | 6.35 | 6.35 | 10 | 8.3 | 140 | 35 | 10 | 55 | \1,770 |
| RDBH-210 | 6.35 | 6.35 | 10 | 8.3 | 210 | 35 | 10 | 85 | \2,290 |
| Models | Across flat (mm)S1 | Bit two side width (mm) small 2 | dimensions (mm)D1 | dimensions (mm)D2 | dimensions (mm)L | dimensions (mm)L1 | Qty./Carton | weight (g) | MSRP in JP |
|---|---|---|---|---|---|---|---|---|---|
| RDBH-060 | 6.35 | 6.35 | 10 | - | 60 | 25 | 10 | 21 | \975 |
| RDBH-065 | 6.35 | 6.35 | 10 | - | 65 | 35 | 10 | 23 | \1,530 |
| RDBH-140 | 6.35 | 6.35 | 10 | 8.3 | 140 | 35 | 10 | 55 | \1,770 |
| RDBH-210 | 6.35 | 6.35 | 10 | 8.3 | 210 | 35 | 10 | 85 | \2,290 |
