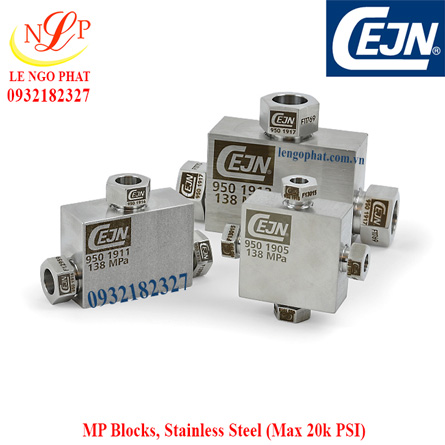

2-way Elbow block - MP Blocks, Stainless Steel

2-way Elbow block - MP Blocks, Stainless Steel

For tube size 1/4", female thread. Seal with 60° sealing cone. Supplied with collars and gland nuts.

MP Blocks, Stainless Steel

MP (Max 20k PSI)Blocks

Industry standard blocks in cross, tee and elbow configurations. Compact designs, made from AISI 316L / EN1.4404 stainless steel for maximum life and safety weep holes on all the connection ports. All blocks provided with collars and gland nuts.

Applications: Laboratories, hoses with MP connections, test rigs and calibration benches.

Giá: 0932182327

Mã sản phẩm: 2-way Elbow block

Model: 199501900, 199501901, 199501902, 199501903, 199501904

MP Blocks, Stainless Steel (Max 20k PSI)
Part No.	Category	Description	Description Class	Tube Size (Internal)	Rec. torque (Nm)	Max working pressure
199501900	2-way Elbow block	For tube size 1/4", female thread. Seal with 60° sealing cone. Supplied with collars and gland nuts.	7/16" - 20 UNF	2.8mm	27 Nm	20015 PSI (138.0 MPa)
199501901	2-way Elbow block	For tube size 3/8", female thread. Seal with 60° sealing cone. Supplied with collars and gland nuts	Thread 9/16”-18 UNF	5.2mm	41 Nm	20015 PSI (138.0 MPa)
199501902	2-way Elbow block	For tube size 9/16", female thread. Seal with 60° sealing cone. Supplied with collars and gland nuts.	13/16" - 16 UNF	6.2mm	75 Nm	20015 PSI (138.0 MPa)
199501903	2-way Elbow block	For tube size 3/4", female thread. Seal with 60° sealing cone. Supplied with collars and gland nuts.	3/4 - 14 NPSM	12.7mm	123 Nm	20015 PSI (138.0 MPa)
199501904	2-way Elbow block	For tube size 1", female thread. Seal with 60° sealing cone. Supplied with collars and gland nuts	Thread 1 3/8" - 12 UNF	17.5mm	204 Nm	20015 PSI (138.0 MPa)
